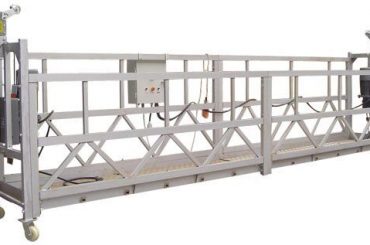

Suspended Working Platform Introduction
The product are mainly used for the exterior construction, decoration and fitting-out works of multi-storey buildings such as the following: high rise elevator, cable way installation, granary, colliery, security inspection, tower hoist driver’s lift, welding of ship building, large tank, chimney, boiler maintenance, dam and bridge maintenance. The length can be up to 30 meters. Suspended platform is also applicable to exterior wall decoration, plastering,building insulation, coating, marble tile installation, glass curtain wall installation and cleaning. What’s more, we can design special platforms which can be used for special projects according to clients’ demands.
It is capable of accomplishing construction tasks without the help of scaffolds. Thereby the construction cost is greatly reduced and the efficiency is improved. In addition, this suspended working platform features reliable performance as well as easy operation and displacement.
(1) Platform
Platform is the working place, consist of high balustrade, low balustrade, bottom plate, hoist mounting deck connected with bolt.
(2) Hoist mechanism
Hoist is the motor of suspended platform, adopted electric climbing principle.
Hoist is driven by electric regenerative braking and threephase asynchronous motor, starting through turbine & worm and gear reducer, with steel rope climbing, hoist works up and down following the rope, so keep the platform up and down.
(3) Safety lock
Safety lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining. The safefy lock is of swinging type.
(4) Suspension mechanism
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
(5) Electrical control system
Electrical Contral System is used to control the movement of platforms, and the main elements are fixed in insulated board, Universal Switch,
Power Indicator, Start Button and the Emergency Stop Button are in the door board of the box.
This suspended platform is ideal for building facade construction, decoration, cleaning and maintenance. ZLP series suspended platform, which is developed and produced by us, is ideal for building facade construction, decoration, cleaning and maintenance. It is also widely used in elevator installing, ship building and repairing, or in other areas such as big-size tank, bridge, embankment and chimney. ZLP series versatile knock-down platform provides workers safer, easier and more efficient platform access. Functions and Usage of New Age Suspended Working ...
Basic Info Rated Load(Kg): 630,800,1000 Length of Working Platform: 6m,7.5m,7.5m Trademark: famous brand in China Transport Package: Carton Box Specification: ISO9001: 2000 Origin: Shanghai HS Code: 84289090 Product Description For the whole machine SPECIFICATION ZLP-1000 ZLP-800 ZLP-800A ZLP-630 ZLP-500 ZLP-250 Schedule Weight (Kg) 1000 800 800 630 500 250 Hoisting Speed (m/min) 8-10 8-11 8-11 9-11 9-11 8-11 Rated Power(kw) 3 2.2 1.8 1.5 1.5 1.1 Hoist LTD100 LTD80 LTD80A LTD63 LTD50 LTD40 Safety Lock LSF308 LSF308 LSF309 LSF308 LSF308 ...
Product Description 1.Structure of Suspended Platform (1) WorkingPlatform (2) Hoist Assembly (3) Satety Lock (4) Electric Control Panel(5) Suspension Mechanism(6) Cable(7) Wire rope 2. Usage of Suspended platform (1) Facade maintenance,paiting and cleaning of high building (2) Window cleaning and installation (3) Construction inspection and maintenance of big-size tanks,chimneys ,dams, bridges (4) Maintenance , cleaning ,painting of big ship Technical Parameters Item ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000 Rated Loading 250KG 500KG 630KG 800KG 1000KG Speed ~9.5 m/min ~9.5 ...
Product Description Working Principle of single person pedal suspended working platform Our single person pedal suspended working platform contains a suspension mechanism which can be set up on buildings. Driven by the hoist, the whole suspended platform will move up and down vertically along the steel ropes. Application Our single person pedal suspended working platform is an aerial working construction machinery used for curtain wall installing and exterior wall cleaning. This product is suitable for plastering, veneering, painting, cleaning and ...
Product Description Suspended platform is mainly composed by suspension mechanism,hoist,safety lock,electric control box,working platform.Its structure is reasonable and easy to operate.It can be assembly and disassembly accroding to the actual needs.The suspended platform is mainly used for refurbishment,decoration,cleaning and maintenance of high construction building. Model ZLP150 ZLP300 ZLP500 ZLP630 ZLP800 ZLP1000 Material Steel/Steel With Dipping Zinc/Aluminum Alloy Height 100m Rated load(kg) 150 300 500 630 800 1000 1000 Length of platform(m) 1.5 3.0 5.0 6.0 7.5 7.5 10.0 Safety lock ...
Parameter Working Principle: The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures. Usage and Application: ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations. Above ...
specification with hanging device rope suspended platform HS:84289090 Arc-shaped builing suspended platform can be devided into two kinds of specifications,ZLP630 and ZLP800. Working Principle: Tt is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures. Model for with hanging device rope suspended platform ZLP630 ZLP800 Suspended Platform 1m,2m,3m,1.5m,2.5m to the length made. In any Combination Rated Load 630KG 800KG Rated Lifting Speed 9.3±0.5m/min 8.2±0.5m/min Length of Platform 6000mm 7500mm Surface Proceeding Aluminum;steel materials(Galvanized,Spraying) Lifting Height 100m 100m Cable 100m 100m Max Lifting Height ...
Quick Details Condition:New Place of Origin: Shanghai, China (Mainland) Brand Name: ELK Model Number: 150410-1038 Usage: lifting equipment Power Source: Electric Sling Type: Chain Maximum Lifting Weight: 3.75ton Maximum Lifting Height: 1-100M, as customer required Lift Speed: 4.4m/min Certification: CE & ISO9001:2008 Warranty: 2 years After-sales Service Provided: No overseas service provided Hoist color: genneral yellow/Provide your required color atla Hoist chain dia.: 10.0mm Hoist chain: Japanese FEC80 or Chinese G80 Hoist chain fall: 2 Hoist shell: light aluminum alloy ...
Quick Details Place of Origin:Shandong, China (Mainland) Brand Name:Succcess Model Number:SJYT-23 Lift Mechanism:Lift Chain Lift Drive / Actuation:Hydraulic Power:220V,380V Rated Loading Capacity:150kg Min. Lifting Height:2.9m Max. Lifting Height:25.9m Table Size:800*800mm Overall Dimensions:1970*1650*2900mm Weight:2000kg Certification:CE ISO Warranty:1 year color:all lifting height:23m working height:24.7m place of origin:Shanghai lifting speed:0.03m/s Supply Ability Supply Ability: 200 Set/Sets per Month suspending working platform aluminum scaffold with low price Packaging & Delivery packaging: 1. wooden case 2. plywood case 3. suitable for the long distance inland ...
ZLP500 2M * 2, 1.5KW 6.3KN Strong Suspended Working Platform With Steel Wire 8.3MM Diameter Our factory: SUCCESS. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended Platform, building hoist and other various kinds of construction equipments. Our products with professional quality, competitive price and fast delivery. We can customized according to your requirements. Applications: 1. Cleaning and maintaining of the exterior wall of high-rise building. 2. Painting, decoration and ...
1000 kg 2.5 m * 3 Sections Suspended Access Equipment ZLP1000 With 30kN Safety Lock Quick Detail: 1. Model No.: ZLP1000 2. Brand Name: HAOKE 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 1000 KG 6. Lifting Height: Maximum 300 Mts 7. Counterweight: Concrete, Concrete with steel cover, Iron 8. Vltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ (can be customized) 9. Diameter of steel rope: 8.3mm, 8.6mm, 9.1mm Applications: 1. Cleaning and maintaining of the exterior ...
Detailed Product Description 630 kg Electrical Suspended Access Equipment ZLP630 With Hoist LTD6.3 Applications: 1. Widely used in construction, decoration, cleaning an maintenance of high-rise buildings. 2. Used in install and maintenance for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintenance. 3. Also used in inspection and maintenance of large tanks, chimney stalk, reservoir dam, bridge and so on. Specifications Property Model No. ZLP630 Rated load(kg) 630 Lifting speed(m/min) 9~11 Motor power(kw) 2×1.5 50HZ/60HZ Brake torque(Km) 16 ...
Detailed Product Description Rated Load: 800kg Color: Silver, Red, Yellow, Black (can Be Customized) Lifting Height: Maximum 300m Motor Rotation Speed: 1420r/min Counterweight: Concrete, Concrete With Steel Cover, Iron-casting Motor Power: 1.8kw 800 kg Painted / Hot Galvanized / Aluminium Alloy Suspended Access Equipment ZLP800 Quick Detail: 1. Model No.: ZLP800 2. Brand Name:SUCCESS 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 800 KG 6. Lifting Height: Maximum 300 Mts 7. Motor ...
Detailed Product Description Material: Steel, Aluminum Alloy Color: Silver, Red, Yellow, Black (can Be Customized) Lifting Height: Maximum 300m Motor Power: 1.5kw, 1.8kw, 2.2kw Diameter Of Steel Rope: 8.3mm , 8.6mm, 9.1mm Motor Rotation Speed: 1420r/min ZLP Series Suspended Access Equipment ZLP500 , ZLP630 , ZLP800 , ZLP1000 Quick Detail: 1. Model No.: ZLP500, ZLP630 , ZLP800, ZLP1000 2. Brand Name: SUCCESS 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Lifting Height: Maximum 300 ...
2.5 m * 3 Sections Temporarily Installed Access Equipment ZLP800 With Hoist 1.8 kw Quick Detail: 1. Model No.: ZLP800 2. Brand Name: success 3. Material: Aluminum 4. Appearance: Aluminum 5. Capacity Loading: 800 KG 6. Lifting Height: Maximum 300 Mts 7. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ Description: Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock. Length of Platform: 7.5M (2.5M*3SECTIONS) ---- can be customized Hoist Power: 380V/220V/415V/440V, 50Hz/60Hz Suspension Mechanism: Painted or ...
Safe Suspended Access Equipment ZLP630 With Steel Wire 8.3 mm For Cleaning Quick Detail: 1. Model No.: ZLP630 2. Brand Name: SUCCESS 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 630 KG 6. Lifting Height: Maximum 300 Mts 7. Counterweight: Concrete, Concrete with steel cover, Iron Specifications Property Model No. ZLP630 Rated load(kg) 630 Lifting speed(m/min) 9~11 Motor power(kw) 2×1.5 50HZ/60HZ Brake torque(Km) 16 Steel rope angle adjusting range(°) 3°- 8° Distance ...
Aluminium Alloy / Steel / Hot Galvanized Suspended Access Equipment ZLP1000 Quick Detail: 1. Model No.: ZLP1000 2. Brand Name: SUCCESS 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 1000 KG 6. Lifting Height: Maximum 300 Mts 7. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ (can be customized) Description: Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock. Length of Platform: 7.5M (2.5M*3SECTIONS) ---- can be customized Hoist ...
500 kg 2 m * 2 Sections , Aluminium Alloy Suspended Access Equipment ZLP500 Quick Detail: 1. Model No.: ZLP500 2. Brand Name: success 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 500 KG 6. Lifting Height: Maximum 300 Mts 7. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ Description: Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock. Length of Platform: 4M (2M*2SECTIONS) ---- can be customized Hoist ...
Detailed Product Description Color: Red, Yellow, Green, Silver (can Be Customized) Material: Steel / Aluminum Alloy Finished: Painted / Hot Galvanized / Aluminum Voltage: 380V/415V/440V/220V, 50/60Hz (can Be Customized) Motor Power: 1.5KW, 1.8KW, 2.2KW Counterweight: Concrete, Concrete With Steel Cover, Iron-casting Aluminium Alloy / Steel / Hot Galvanized Suspended Access Equipment ZLP630 Our factory: success. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended Platform, building hoist and other various ...
ZLP800 2.5 m * 3 Sections Suspended Access Equipment With Iron Counter Weight Quick Detail: 1. Model No.: ZLP800 2. Brand Name: SUCCESS 3. Material: Steel / Aluminum 4. Appearance: Plastic Spray Painted / Hot Galvanized 5. Capacity Loading: 800 KG 6. Lifting Height: Maximum 300 Mts 7. Counterweight: Concrete, Concrete with Steel Cover, Iron (3 kinds optional) 8. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ Applications: 1. Cleaning and maintaining of the exterior wall of high-rise building. 2. Painting, decoration and refurbishing of ...
6m 1.5kw 630kg Painted Scaffold Working Platforms Aluminum With Steel Wire 8.3mm Description: Haoke Building Machinery Equipment Co., Ltd. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended Platform, building hoist and other various kinds of construction equipments. Our products with professional quality, competitive price and fast delivery. We can customized according to your requirements. Applications: 1. Cleaning and maintaining of the exterior wall of high-rise building. 2. Painting, decoration ...
2.5m x 3 Sections Scaffold Working Platforms 800kg Aluminum With Safety Lock 30KN Applications: 1. Cleaning and maintaining of the exterior wall of high-rise building. 2. Painting, decoration and refurbishing of exterior walls. 3. Installation projects and other construction working of outer walls of high-rise building. 4. Aerial working of ship, large tower, bridge, dams and large chimneys. 5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain. Technical Parameter: Model No. ZLP800 Rated ...
10 Meters Aluminum Alloy Suspended Working Platform With Hoist LTD8.0 Descriptions: Application of suspended platform: 1. Highrise building: Decoration,construction for external wall,installation of curtain wall and external components, repairing, checking,maintenance and cleaning for external wall; 2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,derrick. 3. Large ships: welding, cleaning and painting. 4. billboard: installation billboard for high-rise building. Technical Parameters Model No. ZLP800 Rated load(kg) 800 Lifting speed(m/min) 8~10 Motor power(kw) 2×1.8 50HZ/60HZ Brake torque(Km) 16 Steel ...
7.5m Aluminum Suspended Rope Platform 2 X 1.8kw Power Stable Performance Descriptions: Pin-type Suspended Working Platform is easy to disassemble and combine. It can improve the working efficiency for workers. Applications: 1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components,repairing, checking, maintenance and cleaning for external wall. 2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges, derrick. 3. Large ships: welding, cleaning and painting. 4. Billboard: installation billboard for high-rise building ...
