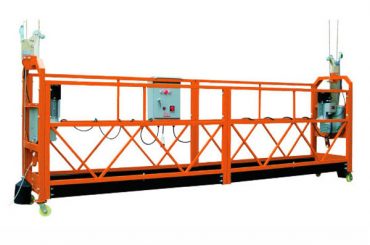

Painted Steel ZLP630 Suspended Working Platform

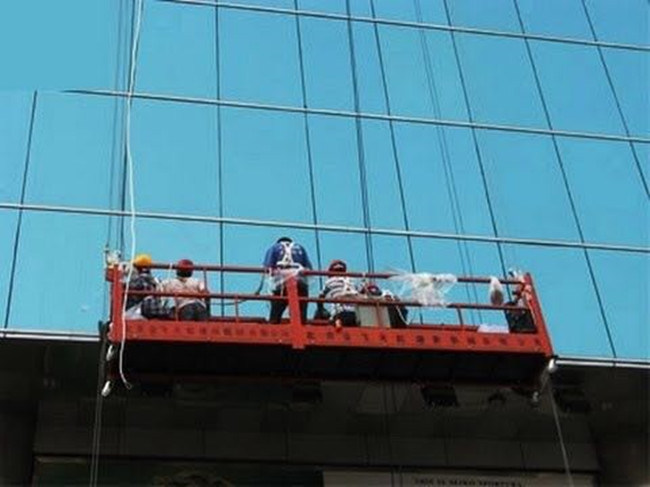

Painted Steel ZLP630 Suspended Working Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp630, ZLP800, 630 KG, 800 KG, 0.69m, 6m, 7.5m, 1.5kw. These values should be confirmed against the final supplied configuration and destination power supply.
Basic Info
Model NO.: zlp630
Width: 0.69m
Motor: 1.5kw*2
Color: as Required
Wire Rope: 8.3mm
Safety Lock: Ldf30
Counterweight: 1t
Name of Product: Platform
Transport Package: Container
Specification: 6m lenght
Origin: China
HS Code: 8428909090
Product Description
| model | ZLP630 | ZLP800 |
| capacity | 630 KG | 800 KG |
| Platform dimension | 6m length | 7.5m length |
| 0.69m width | 0.69m width | |
| Working platform material (not including the frame beam) | Aluminum alloy | Aluminum alloy |
| Steel materials with painting spray coat | Steel materials with painting spray coat | |
| Steel materials with hot dip galvanized coat | Steel materials with hot dip galvanized coat | |
| motor | 1.5kw*2 380V, 50HZ | 1.8kw*2 380V, 50HZ |
| color | As required | As required |
| Safety lock | LDF30 | LST30 |
| counterweight | 25 (kg) x40 Pieces cement cast type ( we offer mold) | 25 (kg) x40 Pieces cement cast type ( we offer mold) |
| Wire rope specification | 100m length Diameter: 8.3mm | 100m length Diameter: 8.6mm |
PACKING INFO
1. Film wrapped into container by sea or truck by land.
2. steel box for spare parts
SHIPPING INFO
1. Send commissioning video to you before shipment;
2. By Sea for batch goods, for Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-20 days against advanced payment.
PAYMENT TERMS
1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1 set.
3. Warranty : Totally 12 months for the whole set machine from the very day machine installed and working well.
OUR SERVICE
1.) Providing timely delivery, standby engineers are ready to solve any problems
2.) Providing 12 (twelve only)months product warranty period,with ample spare parts
3.) Providing work site installation guidance and training of operation and maintenance
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our window cleaning platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
