Detailed Product Description
630 kg Electrical Suspended Access Equipment ZLP630 With Hoist LTD6.3

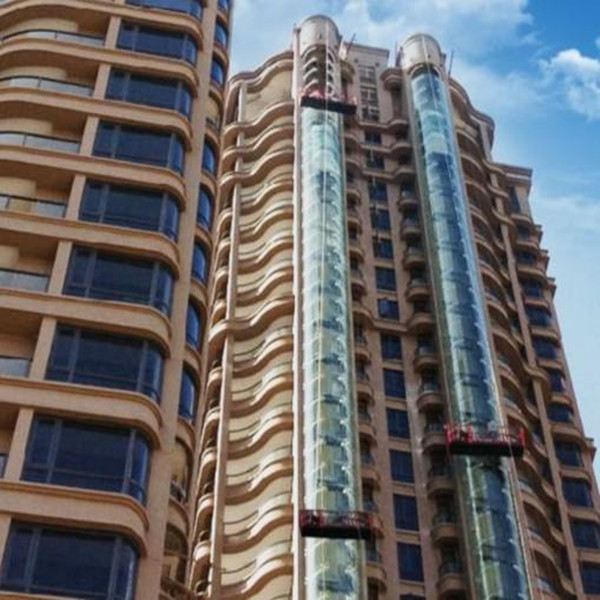

1. Widely used in construction, decoration, cleaning an maintenance of high-rise buildings.
2. Used in install and maintenance for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintenance.
3. Also used in inspection and maintenance of large tanks, chimney stalk, reservoir dam, bridge and so on.
|Property Model No.||ZLP630|
|Motor power(kw)||2×1.5 50HZ/60HZ|
|Steel rope angle adjusting range(°)||3°- 8°|
|Distance between two steel rope(mm)||≤100|
|Rated stretch of front beam(mm)||1500|
|Suspending platform||Locking||Aluminum alloy|
|Nr.Of platform rack||Single rack|
|Suspending mechanism(kg)||2×175 Kg|
|Diameter of steel rope(mm)||8.3|
|Max Lifting height(m)||300|
|Motor rotation speed(r/min)||1420|
1.Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
