800 kg painted / hot galvanized / aluminium alloy suspended access equipment zlp800

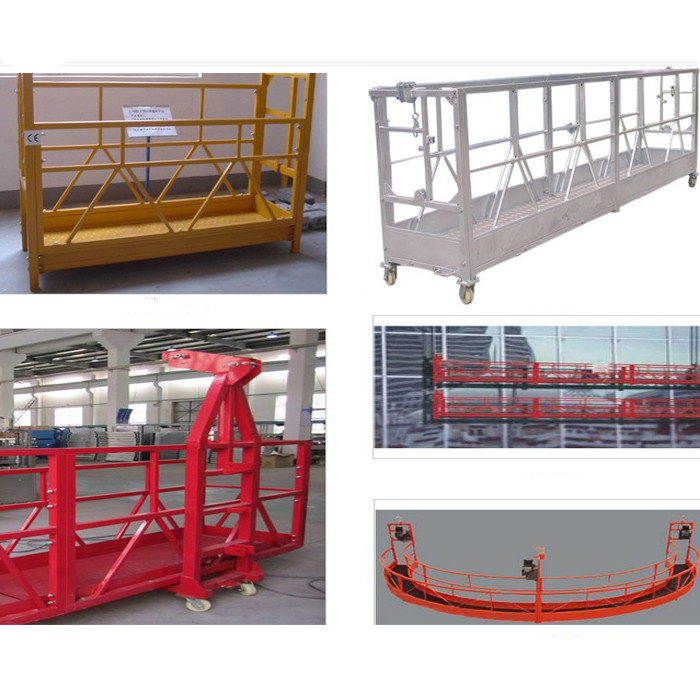

OEM-Manufacturer-Suspended-Platform-Gondola-Hanging-Facade (1)

Detailed Product Description


Rated Load: 800kg
Color: Silver, Red, Yellow, Black (can Be Customized)
Lifting Height: Maximum 300m
Motor Rotation Speed: 1420r/min
Counterweight: Concrete, Concrete With Steel Cover, Iron-casting Motor Power: 1.8kw

800 kg Painted / Hot Galvanized / Aluminium Alloy Suspended Access Equipment ZLP800

Quick Detail:

1. Model No.: ZLP800

2. Brand Name:SUCCESS

3. Material: Steel / Aluminum

4. Appearance: Plastic Spray Painted / Hot Galvanized

5. Capacity Loading: 800 KG

6. Lifting Height: Maximum 300 Mts

7. Motor Rotation Speed (r/min): 1420

Applications:


1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Specifications :


Property Model No. ZLP800
Rated load(kg) 800
Lifting speed(m/min) 8~10
Motor power(kw) 2×1.8 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2500×3)×690×1180
Weight(kg) 410 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×40pcs
Diameter of steel rope(mm) 8.6
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES 220V/380V/

415V

Competitive advantages:


1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;

Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.

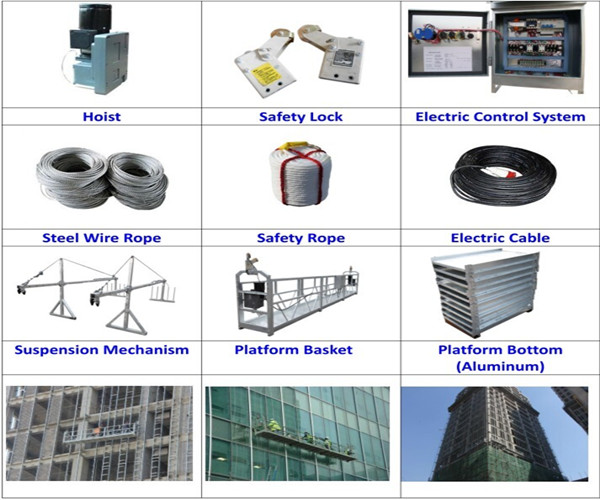

Components and Projects
