hot galvanized rope suspended platform , high rise building suspended gondola

Detailed Product Description

Hot Galvanized Rope Suspended Platform , High Rise Building Suspended Gondola
Quick Detail:
1, Model No.: ZLP630
2, Brand Name: HAOKE
3, Material: Steel
4, Appearance: Hot Galvanized
5, Capacity Loading: 630 KG
6 , Lifting Height: Maximum 300 Mts
Description:
ZLP Series Highrise Building Window Cleaning Machine

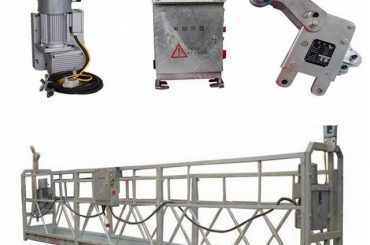

Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock.
Length of Platform: 6M (2M*3SECTIONS) ---- can be customized
Hoist Power: 380V/220V/415V/440V, 50Hz/60Hz
Suspension Mechanism: Painted or Hot Galvanized
Safety Lock: LST30 (2 pcs per set)
Electrical Control System: inner parts with brand CHINT or SCHNEIDER
Steel Wire Rope: Ф8.3mm; 100mts/piece (totally 4 pieces)
Cable: 3*2.5+2*1.5, 100m/roll
Safety Rope: 100m/roll
Counter Weight: Cement, Cement with Steel Cover, Iron (3 kinds optional)
Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Specifications :



Property Model No. ZLP630
Rated load(kg) 630
Lifting speed(m/min) 9~11
Motor power(kw) 2×1.5 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2000×3)×690×1180
Weight(kg) 375 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×36pcs
Diameter of steel rope(mm) 8.3
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES 220V/380V/415V





Competitive advantages:

1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;

Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.
