Steel Three-phase ZLP800 Suspended Working Platform
Steel Three-phase ZLP800 Suspended Working Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp800, 100 Meters, 9.6M, 380v. These values should be confirmed against the final supplied configuration and destination power supply.
ZLP800 steel suspended platform for outer wall cleaning
ZLP800 Steel Suspended Platform consists of the components by: hoists, safety locks, electric control system, suspend platform, suspension mechanism, counter weight, steel rope, etc, And, It is mainly used in the refurbishing of out wall , Installation of curtain wall and window cleaning.
1. The technical parameters
| Model | ZLP800 | |
| Cable/Steel wire rope length | 100 Meters | |
| Rated load | 800Kgs | |
| Lifting speed | 9.6M/Min | |
| Dimensions of platform(L*W*H) | 7500MM*690MM*1300MM | |
| Steel rope diameter | 9.1MM | |
| Hoist | Power | 2*1.8Kw |
| Voltage | 380V, 50HZ, 3 Phases | |
| Safety lock | Maximum impact force | 30KN |
| Locking cable angle | 3º-8º | |
| Suspension mechanism | Front beam overhang | 1.3-1.7M |
| Support adjustable height | 1.44-2.14M | |
| Bottom wheel | 4 Pcs | |
| Concrete counter weight | 1000Kg | |
| Caster wheel under platform | 4 Pcs | |

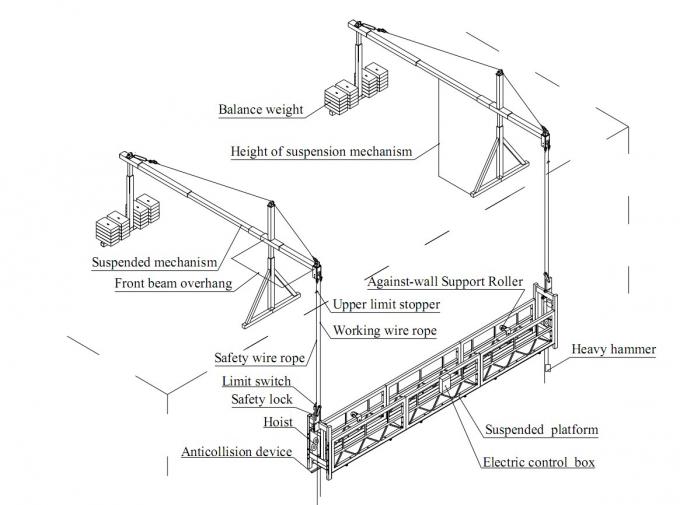

2 Product Drawing
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our window cleaning platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
