220V 100m Suspended Access Platform for Facade Painting
220V 100m Suspended Access Platform for Facade Painting is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references ZLP630, 100m, 300m, 250m, 220v, 60HZ. These values should be confirmed against the final supplied configuration and destination power supply.
100m ~ 250m Working Height 220V / 60HZ / 3 Phase ZLP630 Aluminum Suspended Platform For High Building Painting

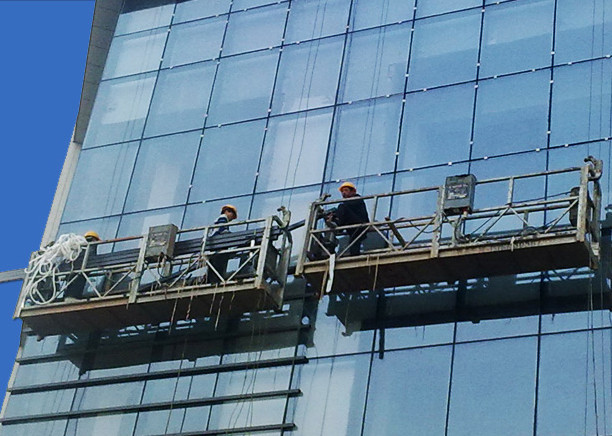

ZLP630 aluminum suspended platform is an ideal working access for façade works of high-rising buildings as facade construction, decoration, maintenance and so on. And it is also widely used into elevator installing, ship building and repairing, or in other works such as big-size tank, bridge, embankment and chimney.
It is easy for operation, flexible for moving, reliable in safety. It can take the place of construction scaffolding, improve the efficiency and save cost. Above all, COSMO Platforms provides workers a safer, easier and more efficient working access.
Specifications
| Property Model No. | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 250 | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 1×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.5 50 HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | NO.Of platform |
1 |
2 |
3 |
3 |
3 |
| L×W×H(mm) | 1200×690×1300 | (2500×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 84 Kg | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25*20pcs | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
Product drawing

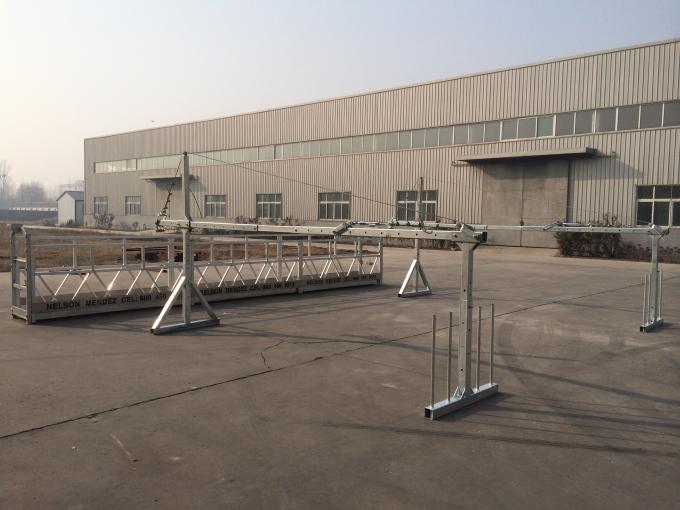

Product pictures
Detailed Product Description
Material: Aluminum Alloy
Rated Load: 630kg
Max Working Heigh: 300m
Lifting Speed: 9.6m/min

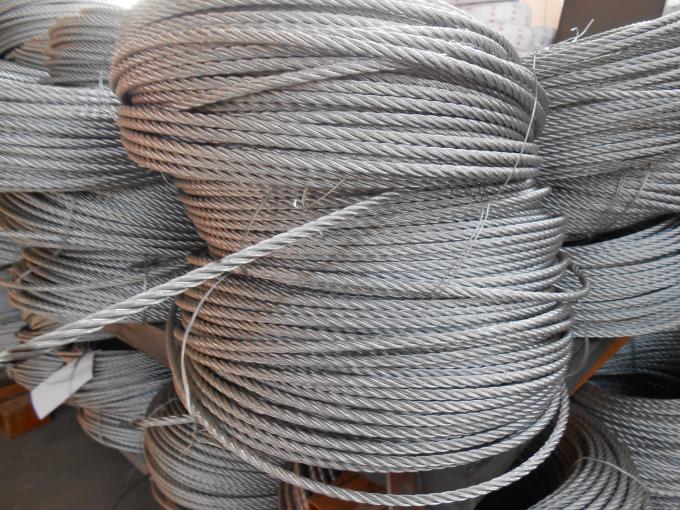

Diameter Of Steel Wire: 8.3/8.6mm
Power: 2*1.5kw
Counter Weight: 900kg
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspended working platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
