General Description

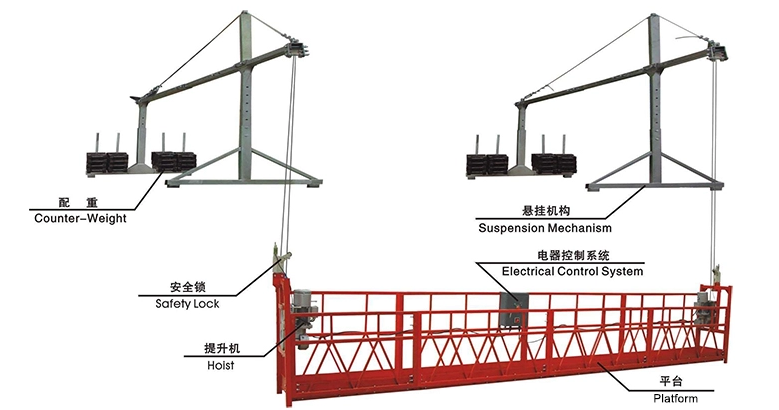

Suspended platform consists if suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.

Suspended platfrom parameter


Item
type and parameter of suspended platform
model of suspended platform
ZLP 800
ZLP 630
lifting speed
8-10m/min
9-11m/min
size of platform (lenght * width)
(2.5mx3)x0.76m
(2mx3)x0.76m
steel wire rope
structure:6x19W+1WS-8.3

Minimum breaking pull force:65KN
structure:4x31SW+NF-8.3

Minimum breaking pull force:53KN
hoist
type
LTD80
LTD63
Coiling mechanism
α type
Rated lifting power
8KN
6.3KN
motor
type
YEJ90LB-4
YEJ90L-4
power
1.8KW
1.5KW
voltage
AC380V
braking torque
15.2NM
safety lock
type
Swing arm type anti tilt
model
LS30
LS30
suspension mechanism
quantity
2 sets
adjustable height
1.15-1.75m
Protruding length of front beam
1.1-1.7m(1.5m and above 1.5m must reduce the loading weight)
quality
suspension platform weight (include hoist,safety lock,motor box)
535kg(steel material)

380kg(aluminum material)
480kg(steel material)

340kg(aluminum material)
suspension mechanism weight
2x175kg
counter weight
1000kg
900kg
full machinery weight
2000kg(steel material)

1840kg(aluminum material)
1790kg(steel material)

1650kg(aluminum material)
suspended paltform work condition
temperature -20℃~+40℃
relative humidity ≤90%(25℃)
voltage deviate ±5%
Gust wind force≤8.3m/s(Equivalent to the 5 stage wind)

Detailed Images

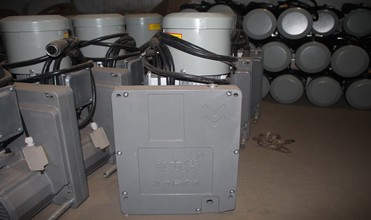

α-type hoist

Model: LTD80A

Lifting speed: 9.3m/min

Motor power: 1.8KW

Dianmeter of wire rope:9.1mm

Self weight:52kg

Dimension:580mmx300mmx252mm

According to client's requirment,it can be configured with LTD8 and LTD6.3 series hoist

saftety lock of suspended platform

Type:LS30
Allowable impulsive force: 30KN
Diameter of wire rope: Φ8.3mm

Wire rope locking disstance:≤200mm

Lock rope angle:platform slope angle 3°-8°

Wire rope of suspended platform

Structure: 4*31SW+FC-8.30
Specification: 8.3mm
Surface condition:galvanization
Oiling method:dry and no oil

Direction of twist:ZS

Tensile strength:1960n/mm²

Min breaking force:≥51.8kn

Measured breaking force:53.8kn

Wire rope of suspended platform

Name:wire rope
Type:Φ18
Standard material: high quality high tenacity wire

mini breaking force :53KN

Guided type fall arrester of suspended platform

Guided type fall arrester of suspended platform

Name:guided type fall arrester

Type:Φ16-20

Standard material:iron

surface treatment: coated

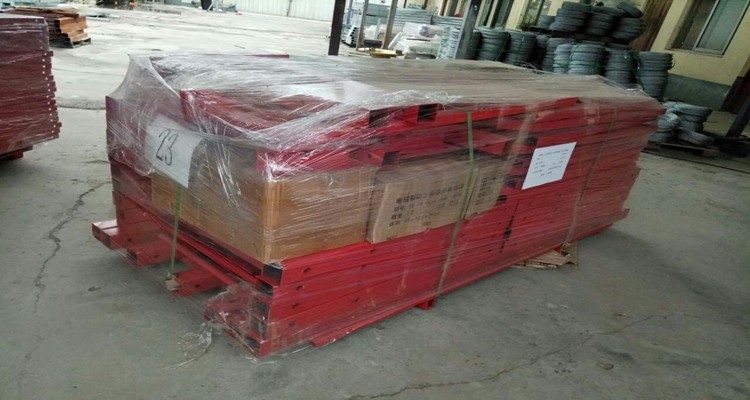

Packing & Delivery


Quick Details


Place of Origin: shanghai, China (Mainland)
Brand Name: SUCCESS
Model Number: ZLP630
Application: building construction
Name: Suspended Platform
Color: Customized
Rated load: 630kg/ 800kg/ 1000kg
Voltage:220V/380V/415V
Certificate: ISO
Type: Suspended Working Platform Equipment
Surface treatment: Powder Coatingn or galvanzied
Material: Galvanized Steel
steel wire rope size: 8.3mm

,
