Quick Details
Place of Origin: Shanghai, China (Mainland)
Brand Name: SUCEES
Model Number: ZLP
Driving method: Electric power
Material: Aluminium
Platform Mounting: Screw type
Certification: ISO9001:2008/CE/TUV
Platform suspension: End stirrup
Anchoring options: Suspension jibs
Color: Customized
Name: SUCCESS machine

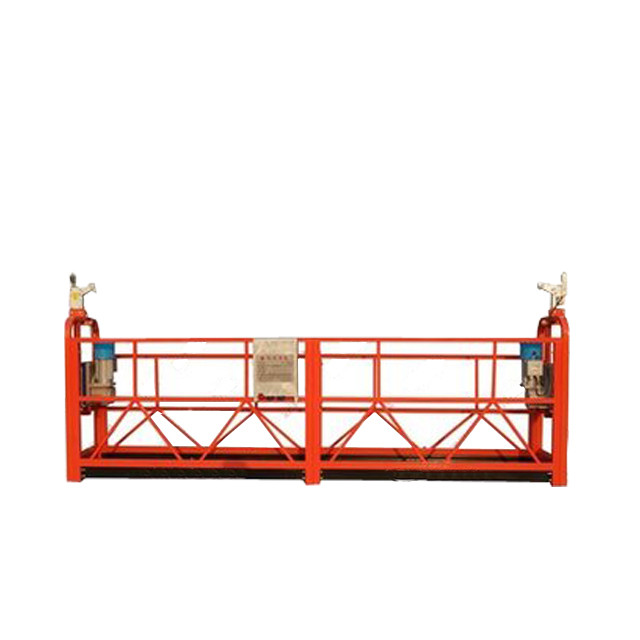

Application: Hanging scaffold platform
Type: ZLP
Supply Ability
Supply Ability: 800 Set/Sets per Month for construction lift
Packaging & Delivery
Packaging Details: Cardboard Box+Plywood Pallet+Plywood Case
Port: Shanghai
Lead Time : Shipped in 20 days after payment
| The parameters of ZLP series suspended platform | ||||
| Tpye | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.1×2 | 1.5×2 | 1.8×2 | 2.0×2 |
| Hoist | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety lock | LSF308 | LSF308 | LSF309 | LSF310 |
| Dia.of Wire Rope | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-9.1mm | 4×31SW+FC-10.2mm |
| Plateform Size (L×W×H) | (2.5×2)×0.76×1.45M | (2×3)×0.76×1.45M | (2.5×3)×0.76×1.45M | (2.5×3)×0.76×1.45M |
| Weight of Suspended Jibs | 340kg | 340kg | 340kg | 340kg |
| Weight of Lifting Part | 410kg(Steel) 290kg(Aluminum) | 450kg(Steel) 310kg(Aluminum) | 520kg(Steel) 340kg(Aluminum) | 520kg(Steel) 340kg(Aluminum) |
| Counter Weight | 800kgs | 900kgs | 1000kgs | 1200kgs |
| 20GP Qty Of Package | 10Sets | 10Sets | 9Sets | 9Sets |
| *The weight of lifting part includes platform,hoist,safety locks and electric control system. | ||||

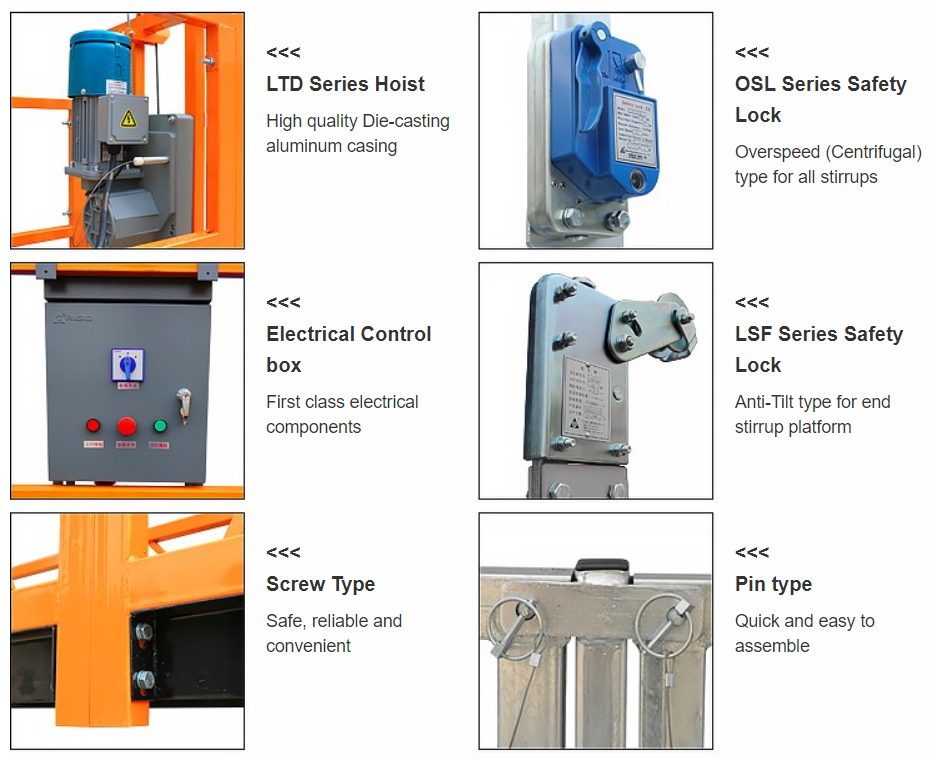

Gondola machine Details
Perfect the details of the process and quality is the guarantee

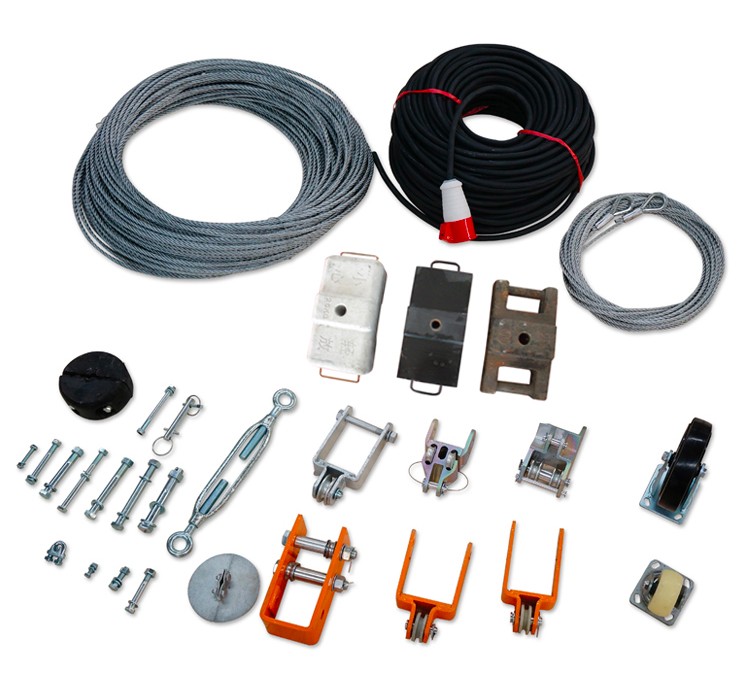

Accessory for Suspended Platform
