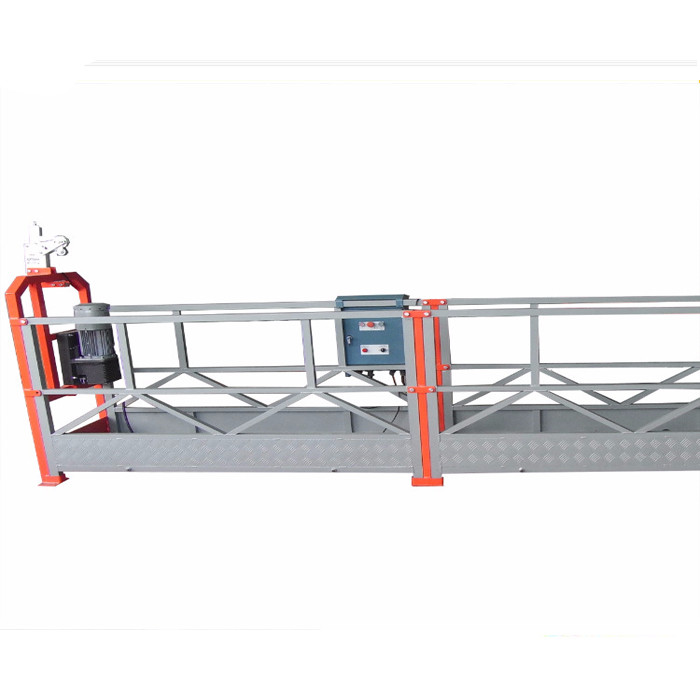

pin – type 800kg suspended work platform with 1.8kw motor power

Pin - Type 800kg Suspended Work Platform With 1.8kw Motor Power

Description


Pin-type Suspended Working Platform is easy to disassemble and combine. It can improve the working efficiency for workers.

Applications


1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external

components,repairing, checking, maintenance and cleaning for external wall.

2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,

derrick.

3. Large ships: welding, cleaning and painting.

4. Billboard: installation billboard for high-rise building.

Technical Parameters


Model No. ZLP800
Rated load(kg) 800
Lifting speed(m/min) 8~10
Motor power(kw) 2×1.8 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending Platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2500×3)×690×1180
Weight(kg) 410 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×40pcs
Diameter of steel rope(mm) 8.6
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES/SINGLE PHASE 220V/380V/415V, 50/60Hz (customized)

Competitive advantages


1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.

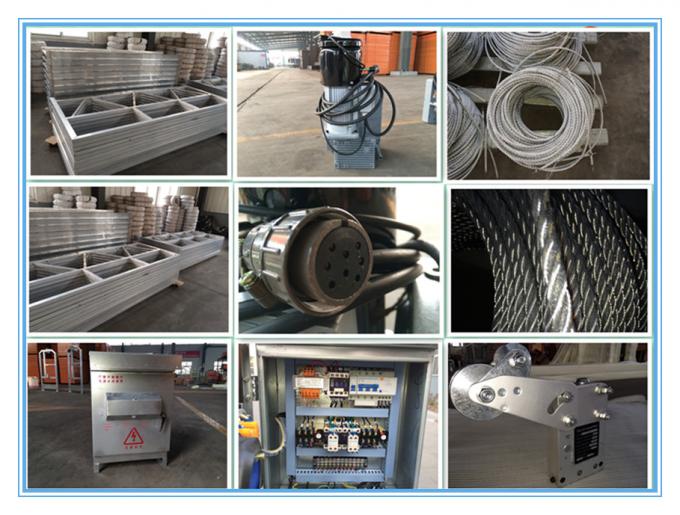

Main Parts
