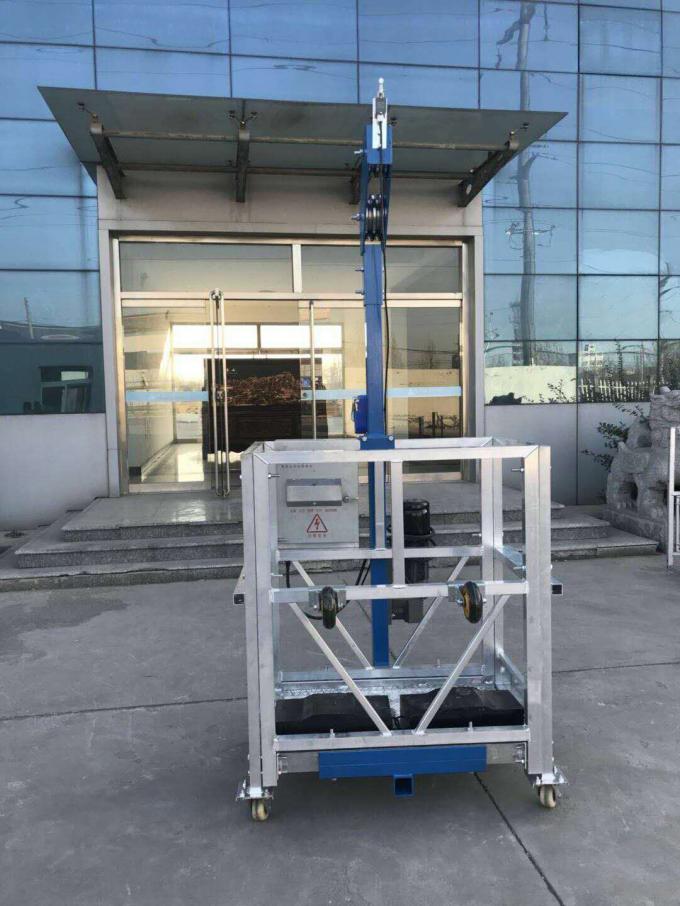

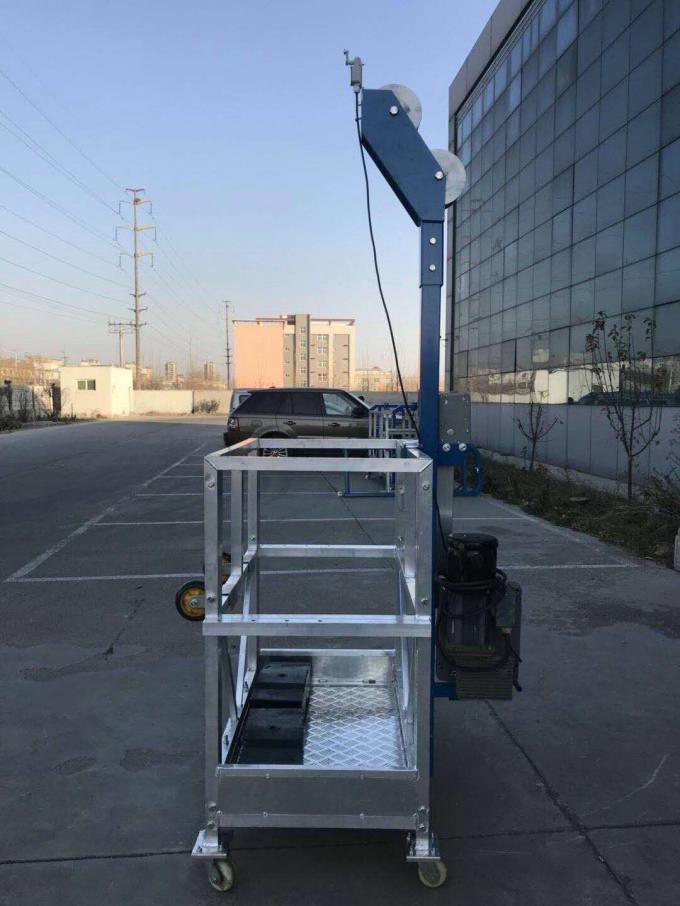

L strirrup Aluminum 250kg Single Man Suspended Platform
There are 3 kinds available for each model of Europa brand Suspended platform. They’re steel painted,hot galvanized,aluminum alloy.
| Property Model No. | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 250 | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 1×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 1 | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | 1200×690×1300 | (2500×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 84 Kg | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25*20pcs | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
