Painted Steel ZLP630 ZLP800 ZLP1000 Suspended Working Platform
Painted Steel ZLP630 ZLP800 ZLP1000 Suspended Working Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp630, zlp800, zlp1000, ZLP500, 50HZ, 60HZ. These values should be confirmed against the final supplied configuration and destination power supply.

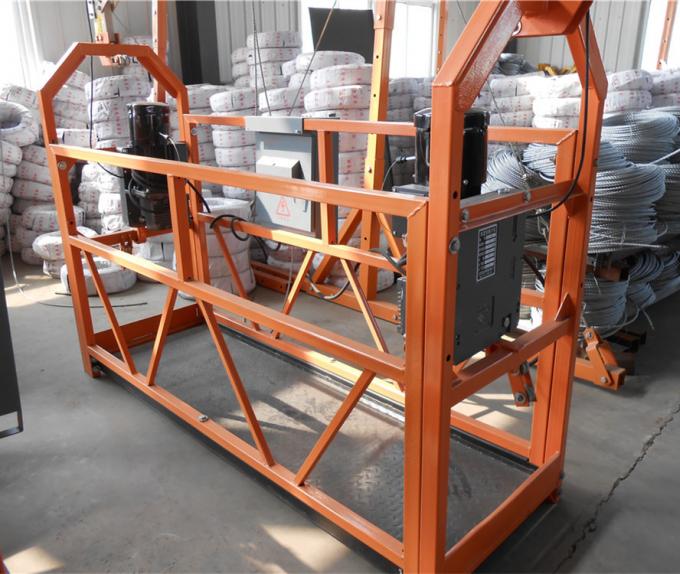

Suspended platform is a kind of aerial working equipment for loading people, by setting up suspension frame on the top of building, which is using steel wire rope along building’s vertical surface,and making up and down movement depends on electrical power.
Components
1. The Parameters of ZLP series Suspended Platform
| Property Model No. | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | (2000×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES/Single Phase | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |

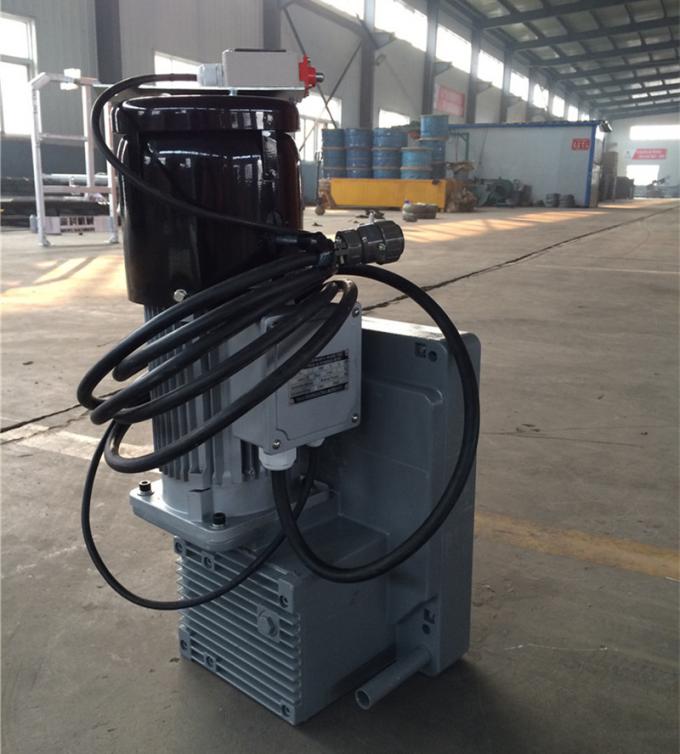

2. Hoist LTD6.3 LTD8.0 LTD10.0

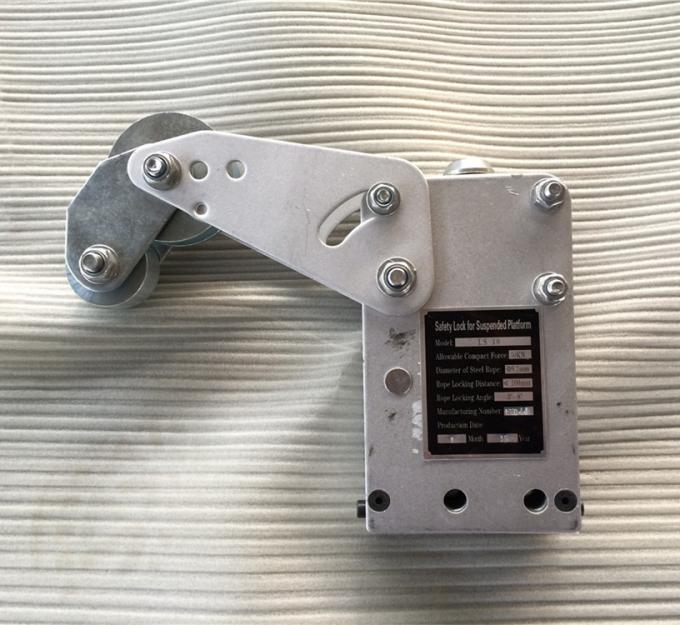

3. Safe lock LS30

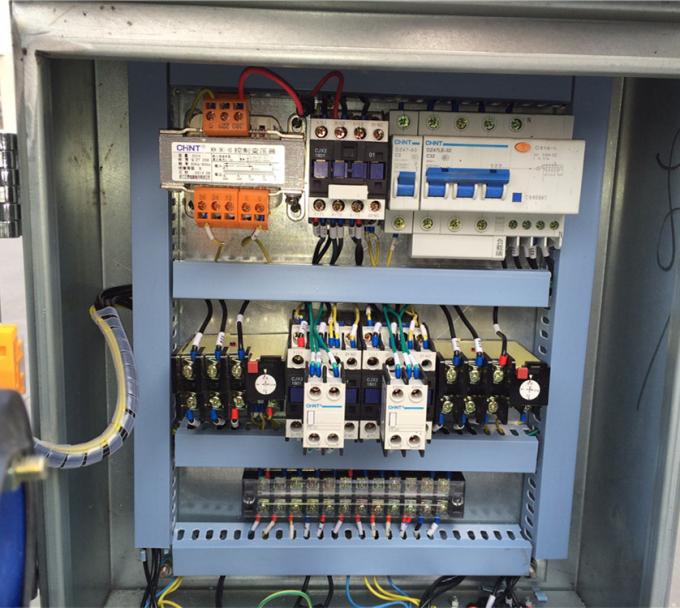

4. Electric control box

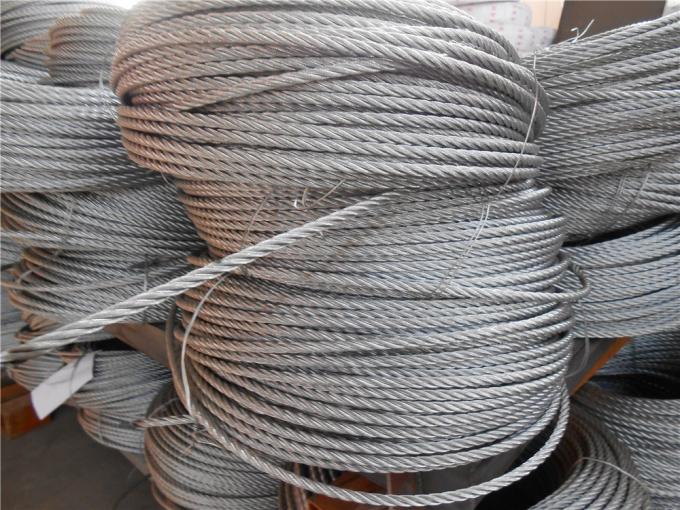

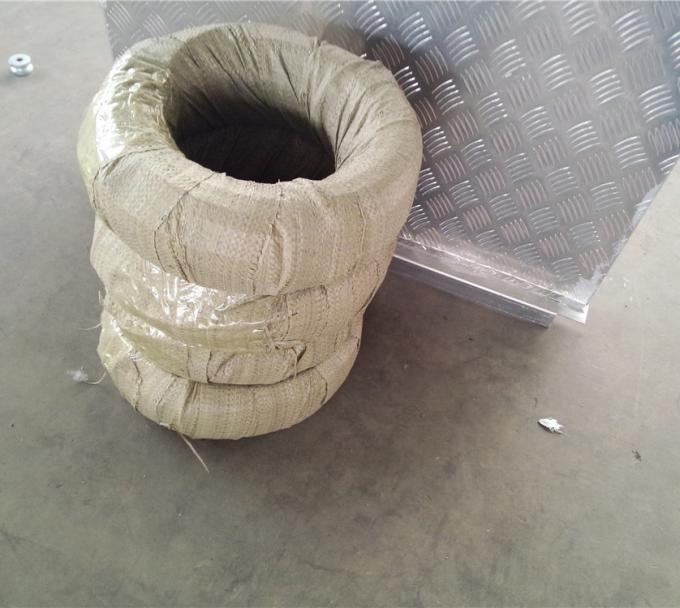

5. Steel wire rope: 8.3mm, 8.6mm or 9.1mm
6. Safety rope: 18mm, 20mm

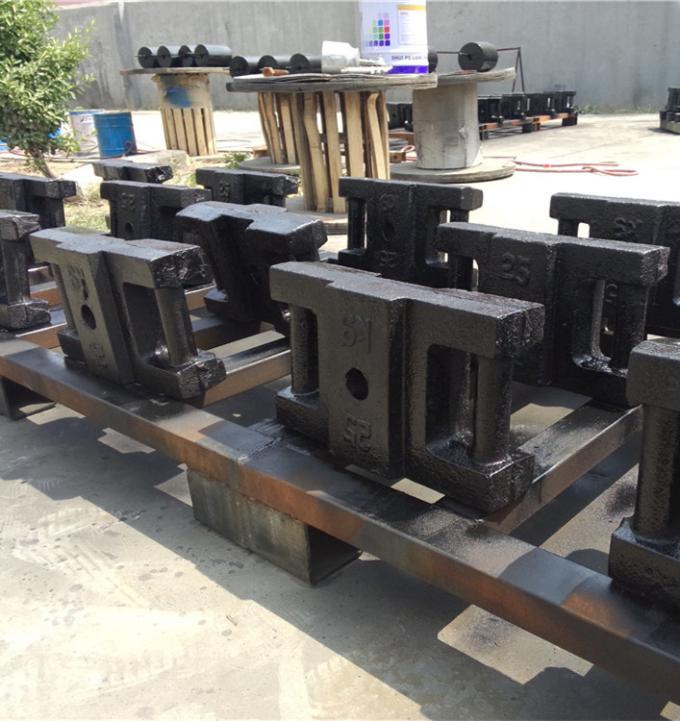

7. Counterweight: Cement, cement with steel cover & Iron casting counterweight

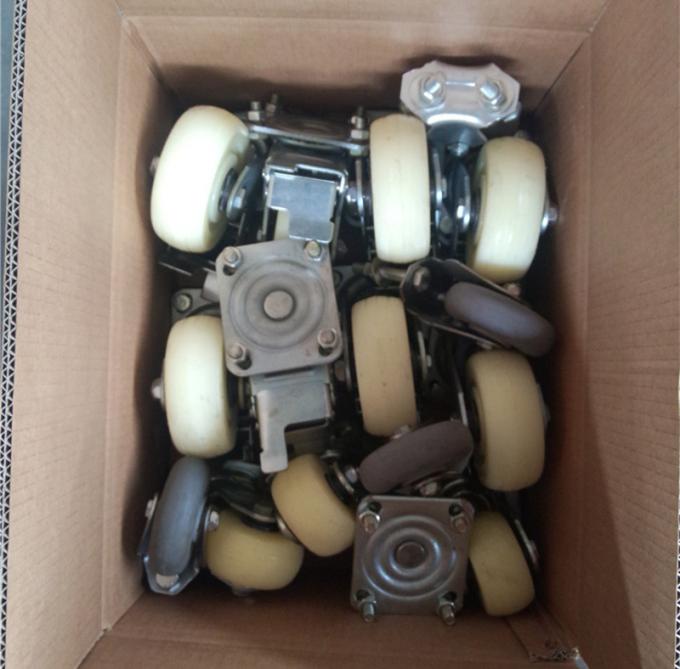

8. Wheel both under suspension mechanism & platform available;
FAQ
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal, West Union
Q: How can I get sample how long will it takes?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide didscount based on the order volume.
Q: What’s the MOQ?
A. Our MOQ is 1 set.
Q: What’s the delivery time:
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: Can I have my own customized product?
A: Yes, we attach great importance to quality control. All products must be strictly tested before launching to the market. Our products are CE and ISO9001 certified.
Q: Can I have my own customized product?
A. Yes, your customized requirement for color, logo, design, package, carton mark etc is welcome.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspended working platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
