1.5kW ZLP500 Window Cleaning Platform
1.5kW ZLP500 Window Cleaning Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp500, 1.5kw. These values should be confirmed against the final supplied configuration and destination power supply.
Detailed Product Description

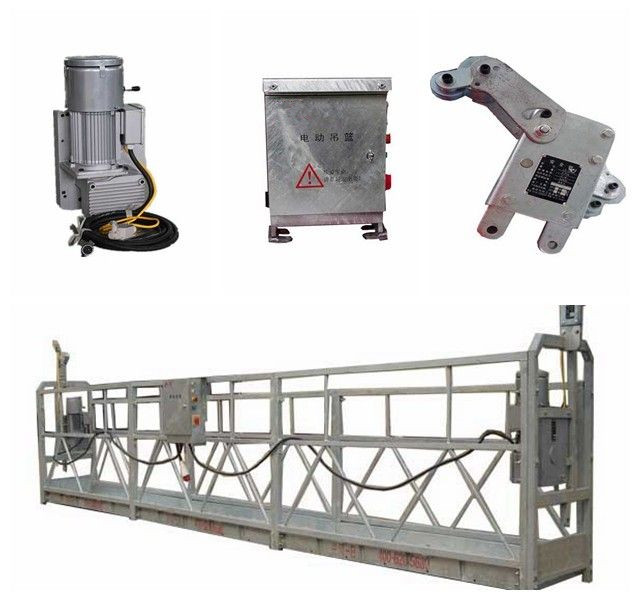

ZLP500 1.5KW 6.3KN Safety Suspended Working Platform / Cradle / Gondola / Swing Stage
Our factory:
SUCCESS. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended
Platform, building hoist and other various kinds of construction equipments. Our products with professional quality, competitive price and fast delivery. We can customized according to your requirements.
Applications:
1.Cleaning and maintaining of the exterior wall of high-rise building.
2.Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Specifications
| Property Model No. | ZLP500 | |
| Rated load(kg) | 500 | |
| Lifting speed(m/min) | 9～11 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | |
| Brake torque(Km) | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | |
| Suspending platform | Locking | Aluminum alloy |
| Nr.Of platform rack | Single rack | |
| Nr.Of platform | 2 | |
| L×W×H(mm) | (2000×2)×690×1180 | |
| Weight(kg) | 375 Kg | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Max Lifting height(m) | 300 | |
| Motor rotation speed(r/min) | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) | |
Packing
Projects
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our window cleaning platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
