ZLP630 Electric Swing Stage for Window Cleaning

ZLP630 Electric Swing Stage for Window Cleaning

ZLP630 Electric Swing Stage for Window Cleaning is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp630, ZLP500. These values should be confirmed against the final supplied configuration and destination power supply.

ZLP630 Electric Swing Stage for Window Cleaning

Quick Details
Place of Origin: China (Mainland), Shanghai,China
Brand Name: Success
Model Number: Scaffolding System, ZLP500/630/800/1000
Driving method: Electric power
Name: suspended platform
Type: ZLP series
Materia: Aluminium/Steel/Zinc
Voltage: 380V50HZ 3Phases

Packaging & Delivery
Selling Units: Single item
Single volume:  4 cm 3
Single gross weight: 2000.0 KG
Package Type: film protection from water and shock

Steel Suspended Platform/Cradle/Swing Stage
A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight rigid steel-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.

SPECIFICATIONS FOR  SUSPENDED PLATFORM ZLP
Type
Model
ZLP800
ZLP630
Rated load
800Kg
630Kg
Platform Dimension
7500（2.5m*3）x720x1300
6000（1+2+3m）x720x1300
Property
Lifting speed
8-10 m/min
Lifting Height
100 m
Cable
100 m
Suspension Mechanism
Front beam overhang
1.3-1.5 m
Support Adjustable Height
1.44 -2.14m
Safety lock
Permission force of impact
30 KN
Locking Cable Angle
3°-8°
Hoist

Electric motor
Pulling power
7.84 KN
6.17 KN
Model
YEJ100L-4
YEJ90L-4
Power
1.8KW *2
1.5KW *2
Voltage
380V/50Hz
380V/50Hz
Rotational speed
1420 rpm
1420rpm
Braking moment
15Nm
15Nm

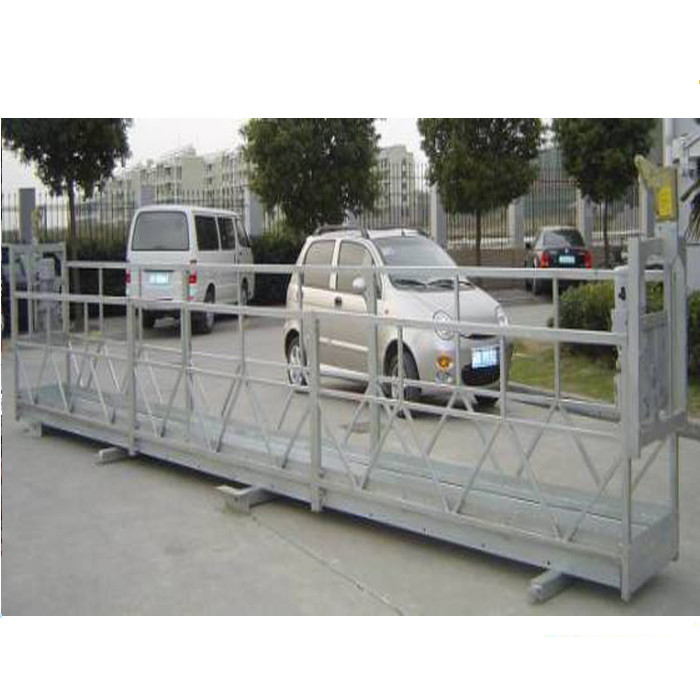

ZLP630 Electric Swing Stage for Window Cleaning - image 2

Features of Steel Suspended Platform/Cradle/Swing Stage
1.A kind of aerial access equipment made of pure steel
2.Simple and lightweight structure capable of carrying huge load
3.The size of platform can be adjusted on request
4.Widely used as a temporary tool vital to aerial work
5.Powered by motor system of the latest technological advances

ZLP630 Electric Swing Stage for Window Cleaning - image 3

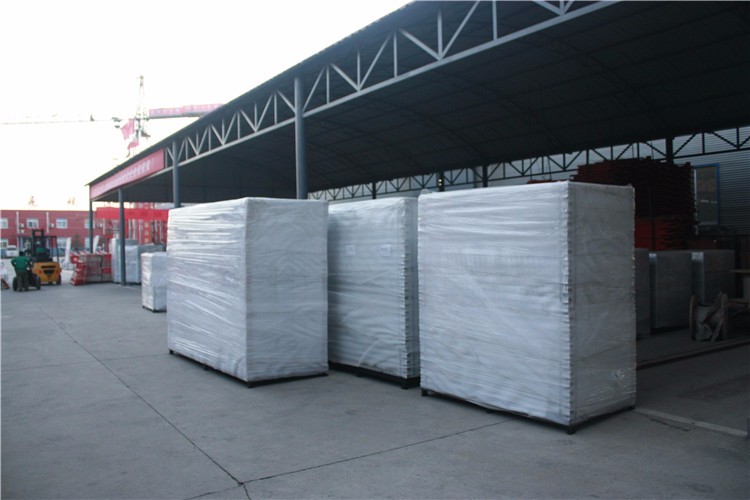

Packaging
Size
3000* 1500 * 1000mm
Weight
2 T

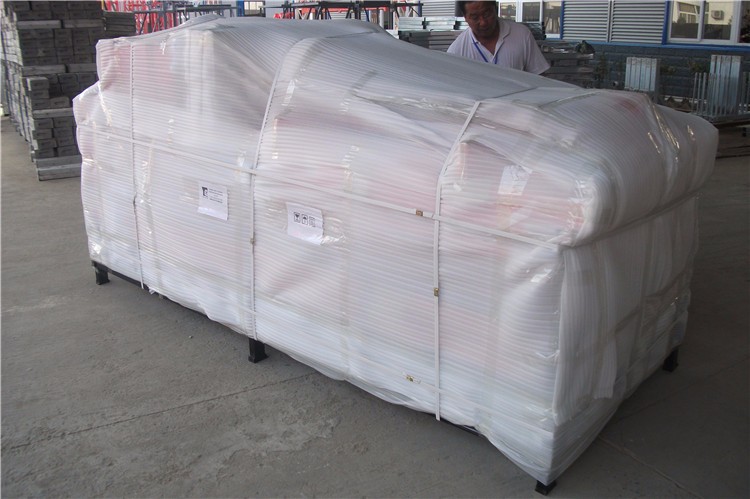

Packaging Details
If container is too tigher,we will use pe film for packing or pack it according to customers special request.

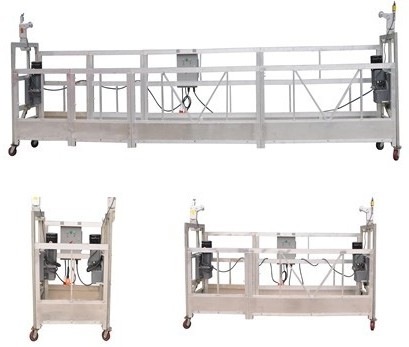

ZLP630 Electric Swing Stage for Window Cleaning - image 4

Packaging
Size
3000* 1500 * 1000mm
Weight
2 T
Packaging Details
If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Configuration and Applications

Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.

Project Information Required

  • Building height and required working length
  • Workers, tools and material load
  • Voltage, phase and frequency
  • Roof parapet, suspension beam and counterweight conditions

Review our window cleaning platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
