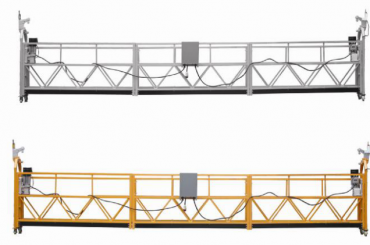

ZLP Series Hot Galvanized / Aluminum Suspended Platform Cradle For high-rise Building Wall Painting , Glass Cleaning
Company Introduction:
success. is founded in 2005. It is a leading high-tech enterprise
specialized in research, development and manufacturer of Electrical Suspended Platform, Construction
Material Hoist, Construction Elevator, Tower Crane, Self-propelled Jack Gantry Lift, as well as other various kinds of construction equipment. We are located in Shandong Gaotang county of China that is a famous hometown of painting and calligraphy. We can customized for our clients with professional quality and competitive price.
Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Technical Parameters:
| Property Model No. | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 250 | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 1×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 1 | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | 1200×690×1300 | (2500×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 84 Kg | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25*20pcs | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
Detailed Product Description
Material: Steel / Aluminum Alloy
Colors: Red, Yellow, Orange, Black, Silver (customized)
Surface Treatment: Painted, Hot Galvanized, Aluminum Alloy
Model Of Hoist: LTD6.3, LTD8.0, LTD10.0
Rated Load: 500kg, 630kg, 800kg, 1000kg
Voltage: 220V/380V/415V/440V 50/60Hz,3 Phases
