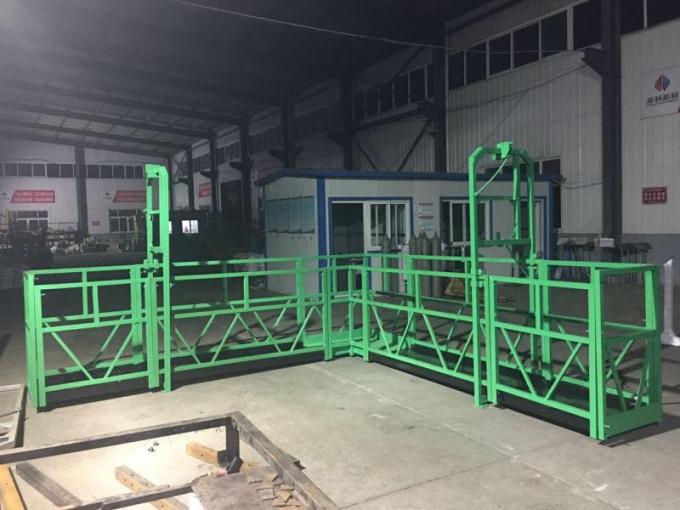

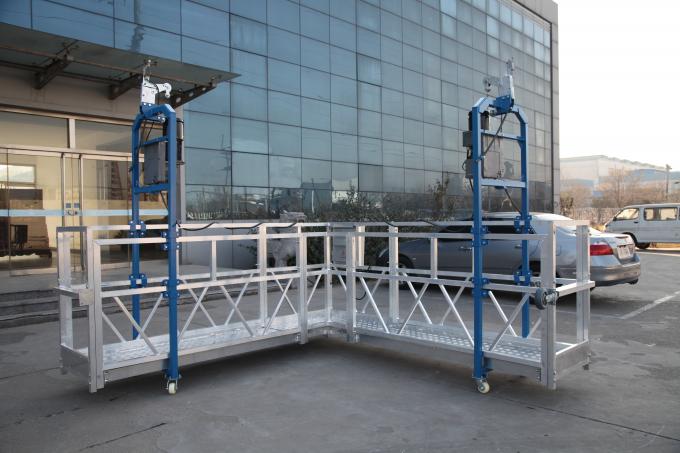

L-shaped Suspended Working Platform for Facade Painting
L-shaped Suspended Working Platform for Facade Painting is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references ZLP630, ZLP800, ZLP1000. These values should be confirmed against the final supplied configuration and destination power supply.
Steel Painted / Hot Galvanized / Aluminum ZLP630 / ZLP800 / ZLP1000 L Shaped Suspended Platform For Wall Painting
Standard Device: 2 pcs of hoist, 2 pcs of safety lock, 1 pc of electric control box, 4 rolls of steel wire rope, 1 roll of safety rope, 1 roll of cable, counter weight.
Alternative Device:Wall against rollers, suspension mechanism wheels.over load cut off, anti swaying device, wire rod winder, extensions, platform roofs, etc.
| Property Model No. | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 3 | 3 | 3 | |
| L×W×H(mm) | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspended working platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
