building facade suspended platform/suspended cradle/suspended gandola for hight building - Suspended Platforms | Elevator Installation Platform | Hoist

Quick Details
Type: CONSTRUCTION EQUIPMENT
Place of Origin: Shanghai, China (Mainland)
Brand Name: SUCCESS
Model Number: ZLP630/ZLP800/ZLP1000
Material: steel , hot galvanized, aluminum
color: red, blue, yellow
Brake torque: 16
rated stretch of front beam: 1500mm
Voltage: 220V/380V/415V

Supply Ability
Supply Ability: 1000 Unit/Units per Month

Packaging & Delivery
Packaging Details: Wooden case, cartons and pallet
Port： Shanghai

SUSPENDED PLATFORM IDENTIFICATION

Suspended platform is a kind of aerial working equipment for loading people, by setting up suspension frame on the top of building, which is using steel wire rope along building’s vertical surface,and making up and down movement depends on electrical power.

MAIN USAGES OF SUSPENDED PLATFORM

A)For exterior wall construction or decoration for tall building, or installing exterior components.

B) FOR exterior wall maintenance and cleaning.

C) For big project, for instance, construction, inspection and maintenance of big jar, chimney, dam, bridge, well frame.

D) Big vessel’s sealing, cleaning and painting.

E) For installing advertisement board in high place.

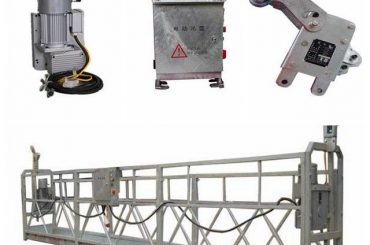

Suspended platform components:

1.PLATFORM

Made up of 1M, 1.5M, 2M, 2.5M, 3M as per clients’requirements, width is 690mm

Advantage:Easy assembly,easy installation, easy removement.

A.Front platform 1.08M, back platform1.18M, head of platform 1.4M according to national standard.

B.Head adopted advanced mechanical principle, increasing safety factor and stablizing accuracy between the holes distance

C.Platform surface adopted sand blast and remoting rust and baking finishing technology, or hot galvanized, the bottom is auto slipper- resistance steel board.

Suspension machanism is made up of front beam, middle beam, rear beam, front base, rear base

Reinforcing steel rope, upper column, counter weight, middle beam inserts front and rear beam and can be adjustable.

Front beam length: 2.3M, 4.0MM thickness, 82mm*82mm

Middle beam length 2M, 4.0mm thickness, 70mm*70mm

Rear beam length 2.3M, 4.0mm thickness, 82mm*82mm

Counter weight frame: 1.65M

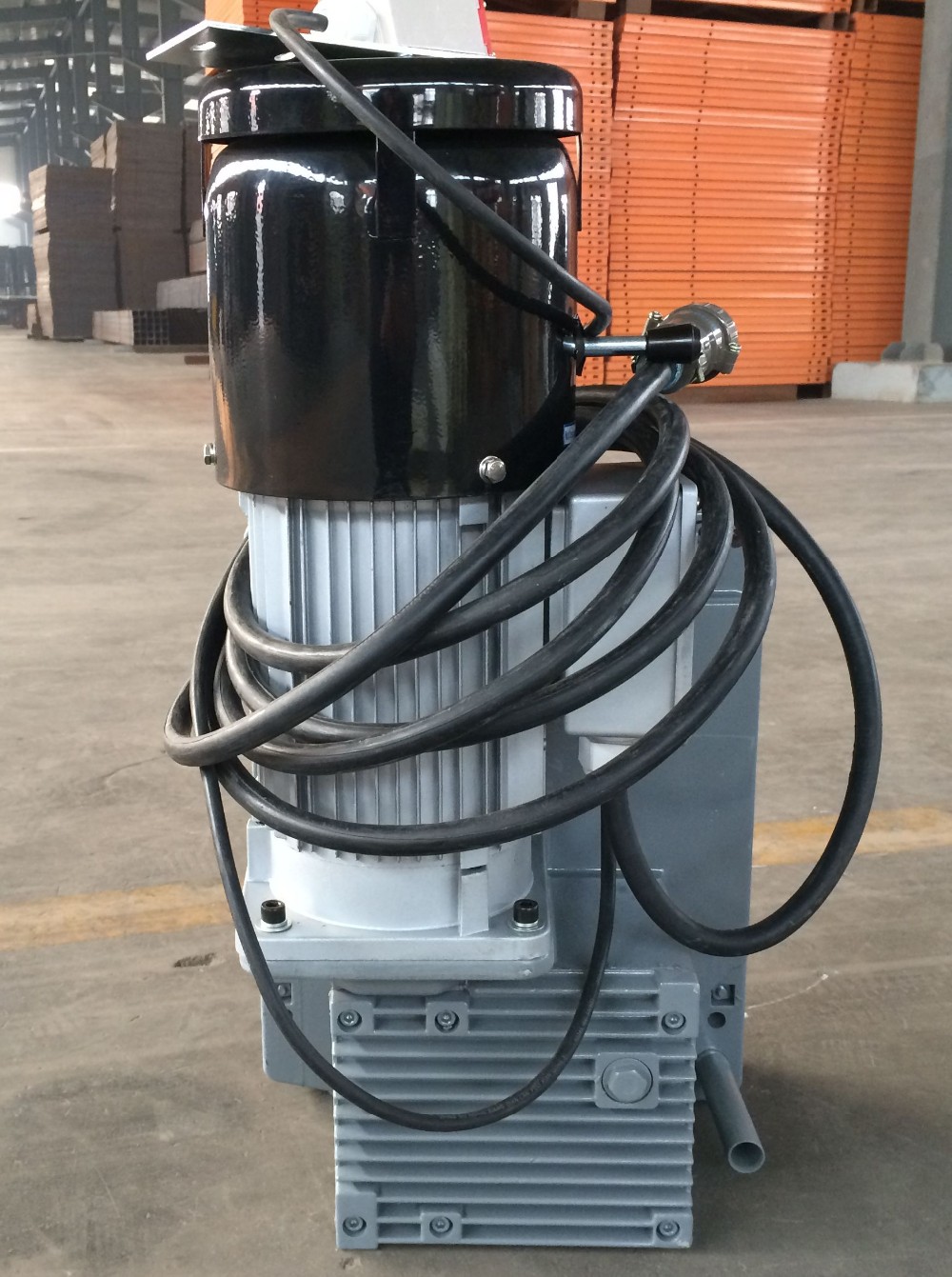

3) HOIST

Mainly type LTD6.3 and LTD8.0,

Hoist inside components: gear is pure copper, wire winder is aluminum alloy

Remarks: Pls confirm the voltage , we have three phases and double phases voltage,

Weight of hoist is 52-55kg, inside package is carton+film, outside package is wooden case.

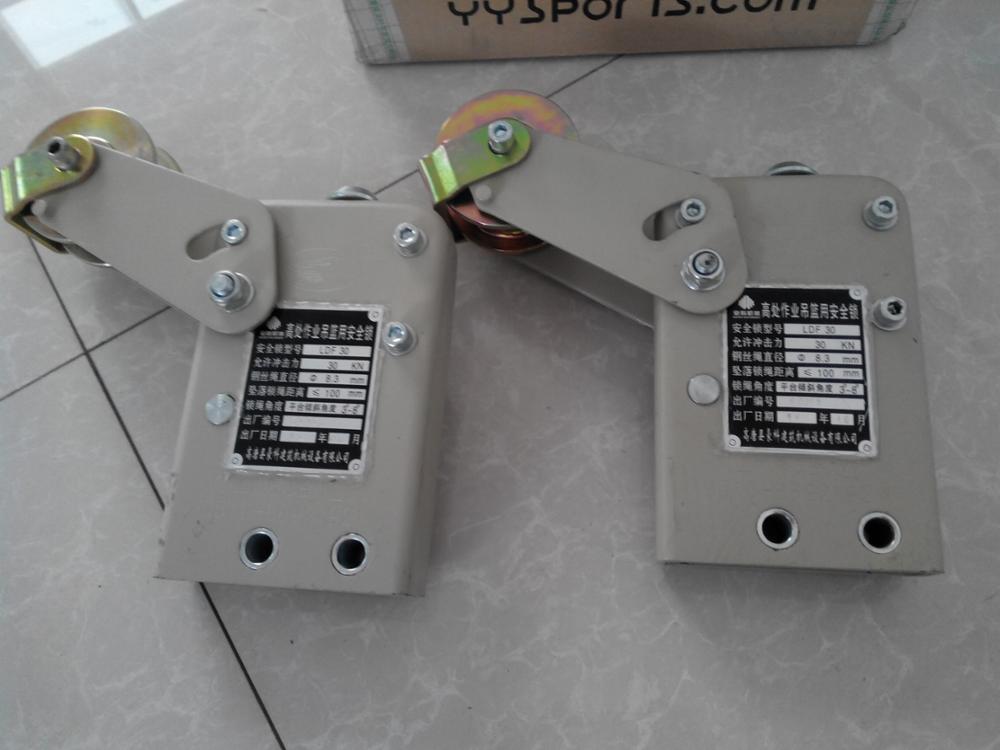

4) SAFETY LOCK

Safety lock is Dacrmet stainless steel, strengthen, once happen vibration, it can be locked immediately, 100% qualified. It can be divided with claw and without claw.

Parameter as follows:

Safety Lock Model	LDF30
Adjusted specification	All Model
Allowable Compact Force	30KN
Adjusting range of rope lock angle	3°~8°
Rope Lock Distance	<100mm

5) CONTROL BOX

With years of experience and transformation, Haoke control box is highly configured (our products are absolutely no leakage and design science, waterproof, anti impact) with moisture proof, rain prevention and fog prevention measures, 100% of the internal parts are original CHINT (after a long time experiment, and our own patent, our power distribution. The box has light weight, small size, more than three times life, the advantage of low voltage control, inside part 100% CHINT), CHINT 50 transformer, can protect the instability of the current, play a protective role, avoid voltage instability caused by accidents, low voltage to the industry inconvenience. AC contactor is CHINT 18A, overheating protector and other internal components 100% are CHINT's.

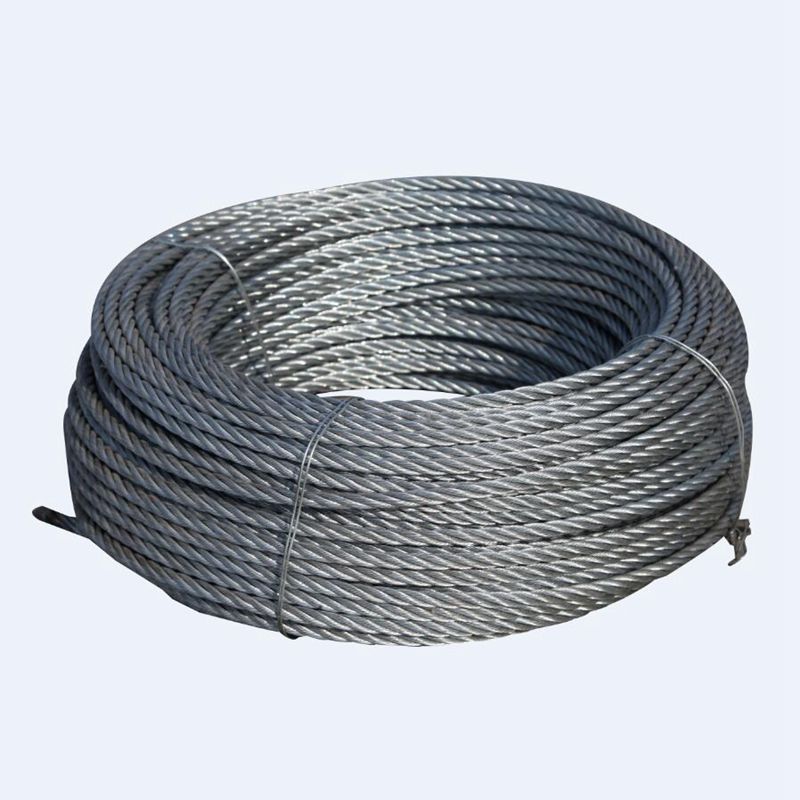

6) WIRE ROPE

7) SAFE ROPE

100 meters / root, weight 13kg. We can choose two kinds of all - type and twist - type. The material: polypropylene fiber (high strength line) is the special purpose of the first class ocean ship; the high quality and high strength of 18mm, the large strength, the soft and hard, no release, etc. Breaking pull 47250N GB6095-85.

8) CABLE

Standard 100 m / roll, weight 18.2kg, length can be customized according to customer requirements, lengthened part of the cost borne by the customer.

Remarks: some customers' voltage is 220V single phase, and they must be equipped with 6 πr cable. If the voltage is 220V three-phase, it is equipped with 4 πr cable.

Other voltages, such as 380V, 415V, etc., will be matched with 2.5 πr cables.

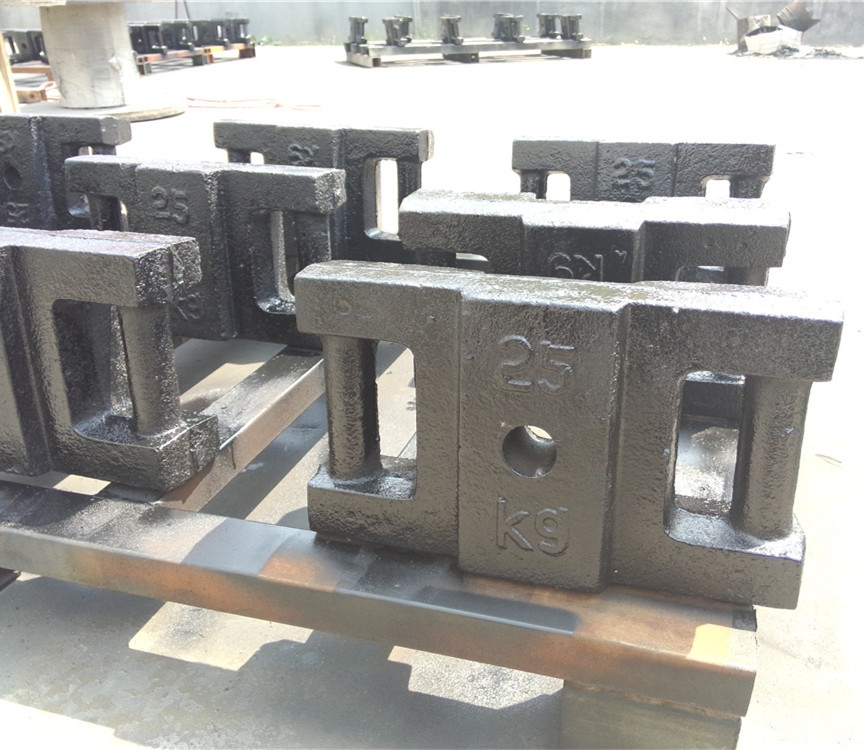

9) COUNTER WEIGHT

We can provide three different kinds of weight, including:Concrete counter weight, Concrete with steel cover,Iron-casting counter weight.

FAQ

1. Q: How do I pay for my purchase order?

A: T/T, L/C at sight, Escrow, Paypal, West Union

2. Q: How can I get sample how long will it takes?

A: Because this is large scale construction equipment, we do not supply samples for free. We would provide didscount based on the order volume.

3. Q: What’s the MOQ?

A. Our MOQ is 1 set.

4. Q: What’s the delivery time:

A: It will take less than 15 days to finish one order, But the exact time is according to actual situation.

5. Q: Can I have my own customized product?

A: Yes, we attach great importance to quality control. All products must be strictly tested before launching to the market. Our products are CE and ISO9001 certified.

6. Q: Can I have my own customized product?

A. Yes, your customized requirement for color, logo, design, package, carton mark etc is welcome.

7. Q: How about the warranty?

A: One years warranty. If quality problems occur, please feel free to contact us.
