Aluminum ZLP800 Window Cleaning Platform
Aluminum ZLP800 Window Cleaning Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp800, 800 KG, 7.5M, 2.5M. These values should be confirmed against the final supplied configuration and destination power supply.
Detailed Product Description
ZLP800 High Rise Aluminum alloy Suspended Working Platform for Window Cleaning
Quick Detail:
1, Model No.: ZLP800
2, Brand Name: SUCCESS
3, Material: Aluminum
4, Appearance: Aluminum
5, Capacity Loading: 800 KG
6 , Lifting Height: Maximum 300 Mts
Description:

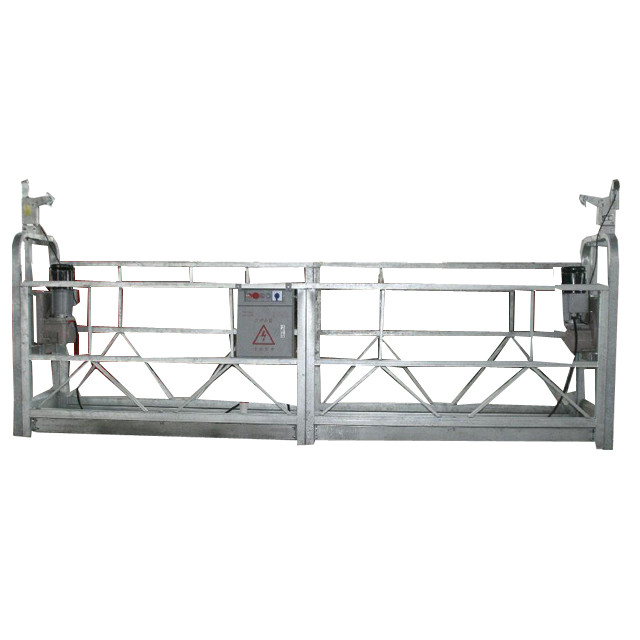

Electrical Suspended Platform ZLP800
Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock.
Length of Platform: 7.5M (2.5M*3SECTIONS) —- can be customized
Hoist Power: 380V/220V/415V/440V, 50Hz/60Hz
Suspension Mechanism: Painted or Hot Galvanized
Safety Lock: LST30 (2 pcs per set)
Electrical Control System: inner parts with brand CHINT or SCHNEIDER
Steel Wire Rope: Ф8.6mm; 100mts/piece (totally 4 pieces)
Cable: 3*2.5+2*1.5, 100m/roll
Safety Rope: 100m/roll
Counter Weight: Cement, Cement with Steel Cover, Iron (3 kinds optional)
Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Specifications :
| Property Model No. | ZLP800 | |
| Rated load(kg) | 800 | |
| Lifting speed(m/min) | 8～10 | |
| Motor power(kw) | 2×1.8 50HZ/60HZ | |
| Brake torque(Km) | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | |
| Suspending platform | Locking | Aluminum alloy |
| Nr.Of platform rack | Single rack | |
| Nr.Of platform | 3 | |
| L×W×H(mm) | (2500×3)×690×1180 | |
| Weight(kg) | 410 Kg | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) optional | 25×40pcs | |
| Diameter of steel rope(mm) | 8.6 | |
| Max Lifting height(m) | 300 | |
| Motor rotation speed(r/min) | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ 415V | |
Competitive advantages:
1. Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;
Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;
Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our window cleaning platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
