ZLP500 ZLP630 ZLP800 ZLP1000 Rope Suspended Platform

ZLP500 ZLP630 ZLP800 ZLP1000 Rope Suspended Platform

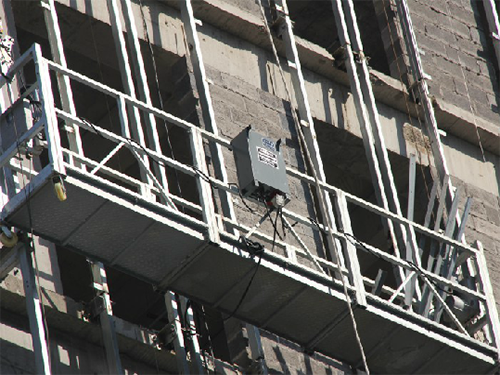

ZLP500 ZLP630 ZLP800 ZLP1000 Rope Suspended Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp500, zlp630, zlp800, zlp1000, 500kg, 630kg, 800kg, 1000kg. These values should be confirmed against the final supplied configuration and destination power supply.

Detailed Product Description

Çar: Yellow, Orange, Red, Silver
Load Rated: 500kg, 630kg, 800kg, 1000kg
Saziya Çargoşe: 5000/6000 / 7500mm X 690mm X 1300mm
Brake Torque: 16
Ropea Rêza Gêlê: 8.3mm / 8.6mm
Motor Power: 2 x 1.5kw / 1.8kw /2.2kw
Voltage: 220V / 380V / 415V, 50 / 60HZ
Têkiliya Qerax: Girêk, Kûrteş Bi Steel, Iron-Casting

Cejna Platforma ZLP Zêvek Platforma ZLP500, ZLP630, ZLP800, ZLP1000 veguherandin

Dîrok:

Shandong SUCCESS Machinery Equipment Co., Ltd. is one high-tech enterprise engaged in manufacturing,

Bazirganî û Xizmetkirina Teknîkî ya Platforma Girtîgeha Suspended Electrical, Construction Material Hoist, Construction Construction

Elevator, Krona Crane, BMU Gondola, Self-propelled Jack Gantry Lift, û amûrên din ên avahiyê.

BİXWÎNE ji hêla ISO 9001 ve tête xurt kirin û hilberên me dihêne derbas kirin.

Serîlêdanên

1. Avakirina avahiyê: Dekarî, avakirina dîwarê derveyî, sazkirina dîwar û derve

beşên

tamîrkirin, kontrolkirin, tamîrkirin û paqijkirina dîwarê derve;

2. Projeya mezin-pispor: avakirin, tamîrkirin û parastinê ji bo tank, tîmîn, dams,

derrick

3. Deryaya mezin: welding, paqij û paqijkirinê.

4. Billboard: Bila avakirina avahiyê ji bo avahiya bilind ya bilind.

Parêzerên Teknîkî:

Main Parts:
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD6.3, LTD8.0, LTD10.0
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement, cement with steel cover & Iron casting counterweight
10. Wheels both under suspension mechanism & platform available;
11. Platform: We can meet your requirements on different length, such as 2m,3m,4m,6m,7.5m….12m
zêdetir.
12. Lifting height: 300m maximum.

Faktorên pêşbaziyê
1. Bi ewlehiya jiyana jiyanê di dema xebata Aerial de
Ewleka ewlehiyê zûka kevirê gazê zûtirîn ku paşê pevçûnê veşartî an qonaxa germê ji dorpêçê derxistin; Pergala kontrola elektrîkê bi parastina leakage ve tête parastin, parastina hewayê-heya, barkirina barkirinê ya berbiçav û berxwedanê ya heyî; Dîra razê ya gazê ya gazê ya gazê, gaziya ewleh û kabîn.
2. Performansa Stable: hilweşîn û bi hêsanî kêm bikin
3. Design designer. Pêdivî ye ku hêsantirle, kom bikin û xebitandin.
4. Dirêjbûna bilindkirina li gor hewcedariya (Maximum 300 Meters)
5. Vê voltage û fonksiyonê tête kirin (220V / 380V / 415V e.)
6. Ji bo bikaranîna bernameya vexwendinê ji bo bikaranîna taybet a vekirî (rêzdar, L shape, U form, etc.)
7. Kalîteya profesyonel, bihayê berxêş, fast delivery, good services.

Configuration and Applications

Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.

Project Information Required

• Building height and required working length
• Workers, tools and material load
• Voltage, phase and frequency
• Roof parapet, suspension beam and counterweight conditions

Review our rope platformê rawestandin, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
