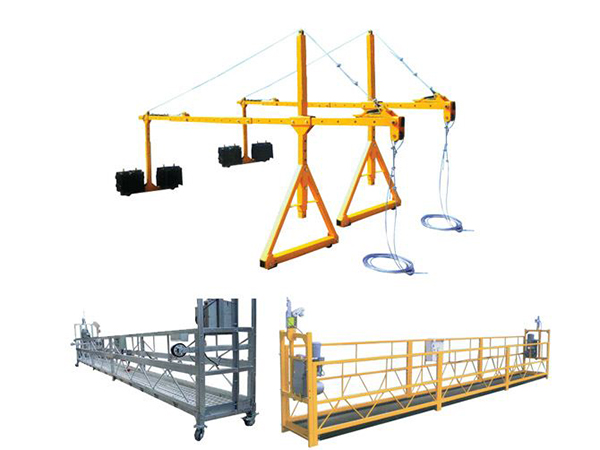

Aluminum 2.5m Rope Suspended Platform
Aluminum 2.5m Rope Suspended Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references 2.5m, 380V, 415V, 440V, 220V, 60Hz, 1.5kw, 8.3mm. These values should be confirmed against the final supplied configuration and destination power supply.
Deskripsi Produk Rinci
Warna: Merah, Kuning, Hijau, Perak (Dapat Disesuaikan)
Bahan: Baja / Aluminium Alloy
Selesai: Painted / Hot Galvanized / Aluminium
Daya Motor: 2 X 1.5kw
Tegangan: 380V / 415V / 440V / 220V, 50 / 60Hz (dapat Disesuaikan)
Diameter Tali Baja: 8.3mm
Kecepatan Rotasi Motor: 1420 R / mnt
Counter Berat: Beton, Beton Dengan Cover Baja, Besi-casting
2 * 2.5m Aluminium Listrik Rope Ditangguhkan Platform Dengan Daya Motor 1.5kw
SUCCESS brand ZLP Series suspended platform with unique top quality in the field of climbing and decorating machinery, which embody on excellent material, advanced design, refined manufacturing and good service. SUCCESS make the most comprehensive models of suspended platform which with most wide range of applications in China. For example, specialized suspended platform for high-rise elevator shaft installation; granary and colliery security explosion-proof platform; dedicated platform for high-rise building tower crane; customized platform for shipbuilding welding and decoration; professional platform for large tank chimney and boiler maintenance; maintenance and decorative platform for dam and bridge; maintenance for exterior wall such as decorate, maintain and clean the external walls of high-level multi-storey buildings and exterior construction, cement coating, veneer, painting, installing the glass curtain walls as well as cleaning and maintenance.
Menerapkan produk ini dapat melepaskan scaffold gratis, mengurangi biaya konstruksi dan efisiensi akan sangat meningkat. Sementara itu, produksinya sederhana, fleksibel, mudah dipindahkan, mudah dioperasikan, aman dan andal.
Parameter teknik:
| Model nomor. | ZLP500 | |
| Beban dinilai (kg) | 500 | |
| Kecepatan mengangkat (m / mnt) | 9 – 11 | |
| Daya motor (kw) | 2 × 1,5, 50 HZ / 60 HZ | |
| Torsi rem (Km) | 16 | |
| Kisaran penyesuaian sudut tali baja (°) | 3 ° - 8 ° | |
| Jarak antara dua tali baja (mm) | ≤100 | |
| Peregangan balok depan (mm) | 1500 | |
| Menangguhkan Platform | Locking | Paduan aluminium |
| Rak platform Nr.Of | Rak tunggal | |
| Platform Nr.Of | 3 | |
| L × W × H (mm) | (2000 × 3) × 690 × 1300 | |
| Berat badan (kg) | 410 Kg | |
| Menunda mekanisme (kg) | 2 × 175 Kg | |
| Counterweight (kg) opsional | 25 × 44pcs | |
| Diameter tali baja (mm) | 8.3 | |
| Max Lifting height (m) | 300 | |
| Kecepatan putaran motor (r / min) | 1420 | |
| Voltage (v) 3PHASES | 220V / 380V / 415V (disesuaikan) | |
Komponen:
Platform: Baja dan Aluminium opsional. Perawatan permukaan Galvanis yang dicat dan Hot opsional.
Mekanisme Suspensi: Perawatan permukaan yang dicat dan Hot Galvanized opsional.
Hoist: Model No. LTD6.3 (1.5kw), LTD8.0 (1.8kw) & LTD10.0 (2.2kw).
Kotak Kontrol Listrik: Desain ilmiah, tahan air dan anti-tabrakan, bagian dalam dengan merek CHINT atau SCHNEIDER.
Kunci Pengaman: Dacro stainless steel, intensitas tinggi; Ini dapat mengunci tali baja segera ketika platform ditangguhkan miring; 100% berkualitas.
Tali Kawat Baja: diameter 8.3mm, 8.6mm, 9.1mm opsional.
Safety Rope: diameter 18mm, kekuatan putus 47250N.
Kabel: Tingkat GB2.0, tahan cuaca karet alam.
Counterweight: Beton, Beton dengan penutup baja & besi cor opsional.
Keunggulan kompetitif:
1. Benar-benar menjamin keselamatan hidup selama kerja Udara
Kunci pengaman kencangkan tali baja segera setelah platform ditangguhkan miring atau tali baja terlepas dari kerekan; Sistem kontrol listrik dirancang dengan perlindungan kebocoran, perlindungan over-heat, perlindungan overload saat ini dan rem berhenti;
Tali kawat baja berkualitas baik, tali pengaman dan kabel.
2. Kinerja yang stabil: naikkan dan turunkan dengan lebih baik
3. Desain modular. Mudah dibongkar, dirakit beroperasi dan dipelihara.
4. Tinggi angkat dapat disesuaikan sesuai kebutuhan (Maksimum 300 Meter)
5. Tegangan dan frekuensi kerja dapat disesuaikan (220V / 380V / 415V dll.)
6. Platform yang ditangguhkan untuk penggunaan khusus dapat disesuaikan (melingkar, bentuk L, bentuk U, dll)
7. Kualitas profesional, harga yang kompetitif, pengiriman cepat, layanan purna jual yang baik.
8. Tim penjualan profesional dengan bahasa yang berbeda Rusia, Spanyol, Inggris.
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our platform tali ditangguhkan, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
