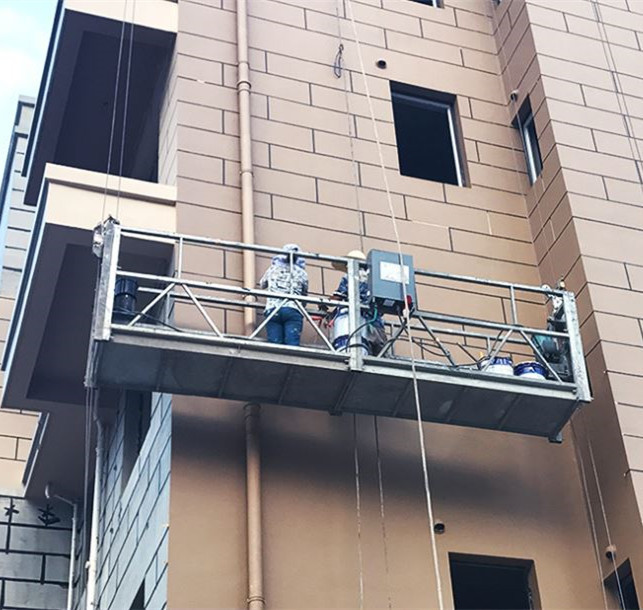

Hot-galvanized 415V Rope Suspended Platform
Hot-galvanized 415V Rope Suspended Platform is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references ZLP800, ZLP630, 6M, 415v, 50hz. These values should be confirmed against the final supplied configuration and destination power supply.
415V / 50HZ 3 Fazo ZLP800 Varma Galvanigita / Aluminia Ŝnurego Senkulpigita Platformo
ZLP800 Ŝnurego Suspendita Platforma Apliko
1. Konstruado Konstrua Laboro
2. Konstruado de Fenestroj Purigado
3. Konstruado de pentrarto
4. Tute Plastering, Mureta putty & Texture
5. Konstruado / Referencoj pri Dams
6.Cooling Turo Laboro
7. Referenco kaj Konservado de Cementa Silo-Fabrikejo
8.Regado kaj Konservado de Chinmneys
9. Laboranta sur Venta Muelejo
Teknikaj Datumoj por ZLP800 Ŝnurego nuligita Platformo
Proprieta Modelo Ne. | ZLP630-6M | ZLP800-7.5M | ZLP1000-7.5M |
Ŝarĝita ŝarĝo (kg) | 630 | 800 | 1000 |
Rapido de levado (m / min) | 9 ~ 11 | 8 ~ 10 | 8~10 |
Potenco de motoro (kw) | 2 × 1.5 50HZ / 60HZ | 2 × 1.8 50HZ / 60HZ | 2 × 2.2 50HZ / 60HZ |
Torkejo (Km) | 16 | 16 | 16 |
Ŝtono de ŝnurela angulo (°) | 3 ° - 8 ° | 3 ° - 8 ° | 3 ° - 8 ° |
Taksita strio de antaŭa fasko (mm) | 1500 | 1500 | 1500 |
Diametro de ŝtalo ŝnurego (mm) | 8.3 | 8.6 | 9.1 |
Maksimuma alteco (m) | 300 | 300 | 300 |
Rapida rotacio de motoro (r / min) | 1420 | 1420 | 1420 |
Voltaro (v) / 3PHASES | 220V / 380V / 415V / 440V | 220V / 380V / 415V / 440V | 220V / 380V / 415V / 440V |
Sekureca Ŝlosilo | 2 PCS de LDF30 | 220V / 380V / 415V / 440V | 220V / 380V / 415V / 440V |
Remark:special sizes can be supplied as per the buyer’s request. | |||
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspendita labora platformo, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
